Shop our ADA-compliant stainless steel sink line. If you do not see an option you need, please call us! We can fabricate any sink needed.

 Model Number: ADA-032E722066H



Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 (0.0781") #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to a brush finish No. 4

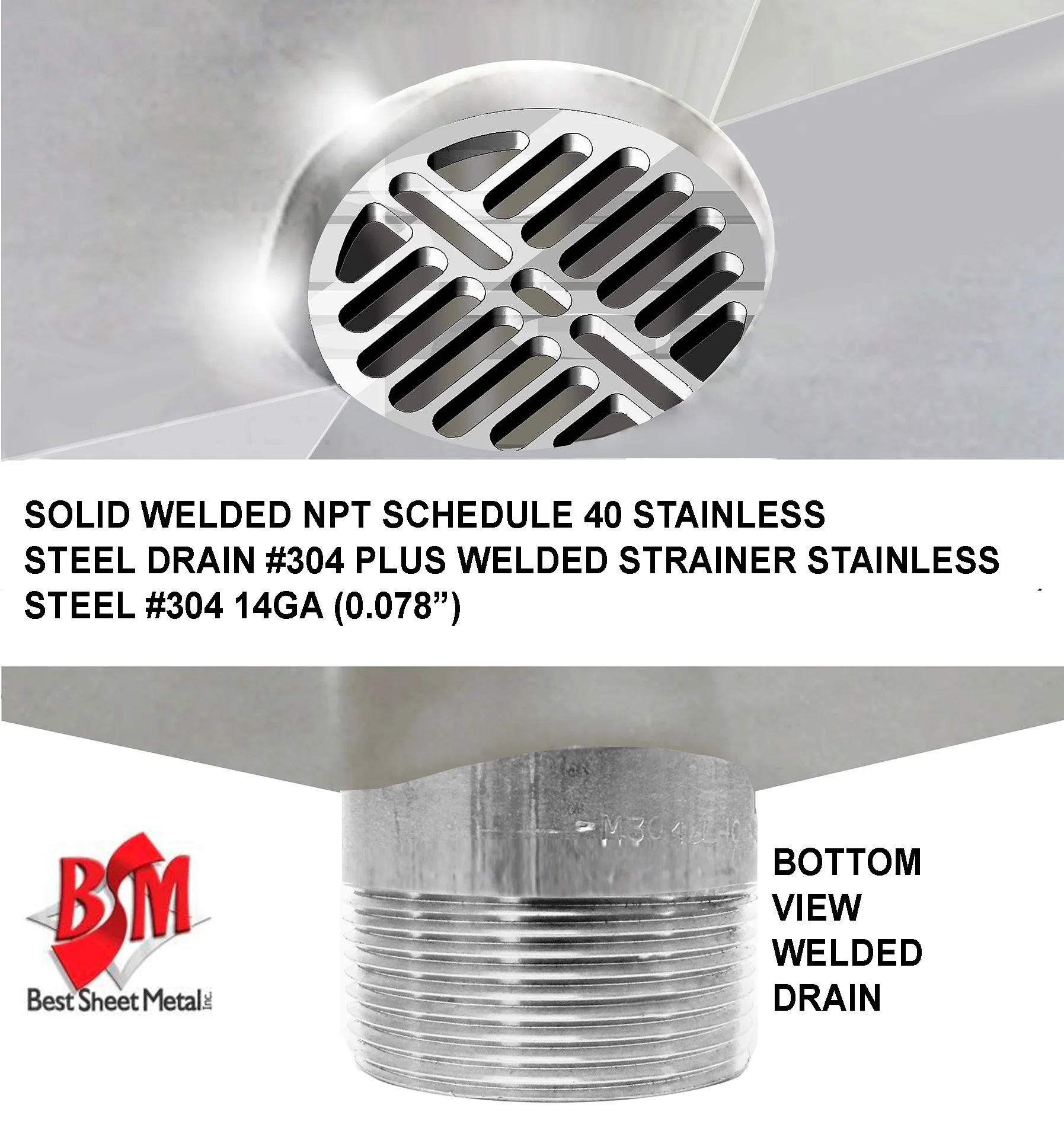

• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF Approved
• ADA Compliant
• With low profile backsplash for mirror ADA code 1127A.8.3.

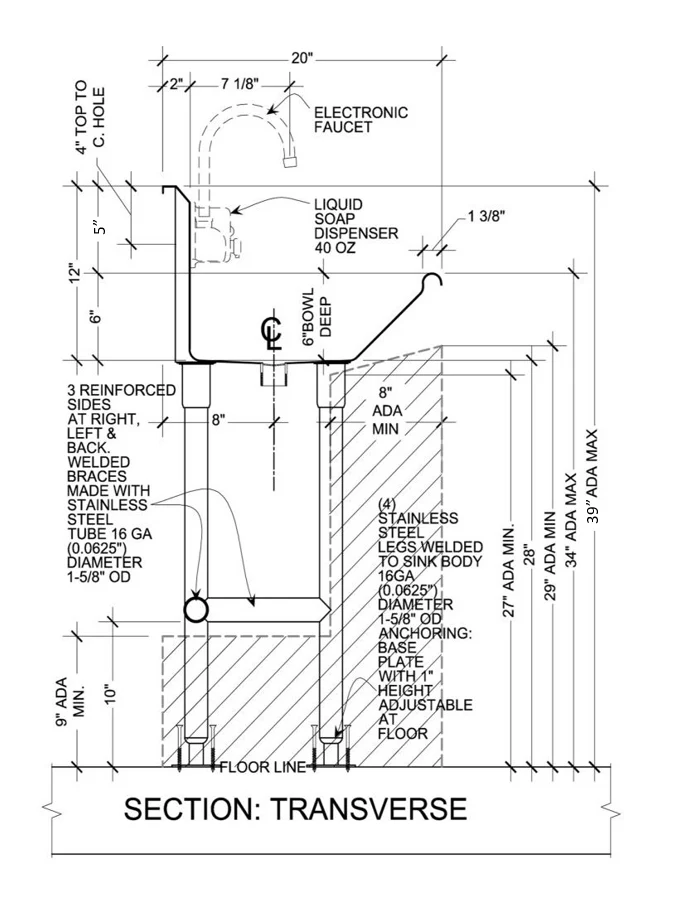

• Total height 39" from floor to top of backsplash
• Includes Electronic Faucet and Soap Dispenser
• Free Standing



Dimensions

Sink dimensions:

72" Long x 20" Wide x 6" Deep

Back Splash Dimensions:

72" Long x 2" Wide x 5" High



Accessories | Mounting

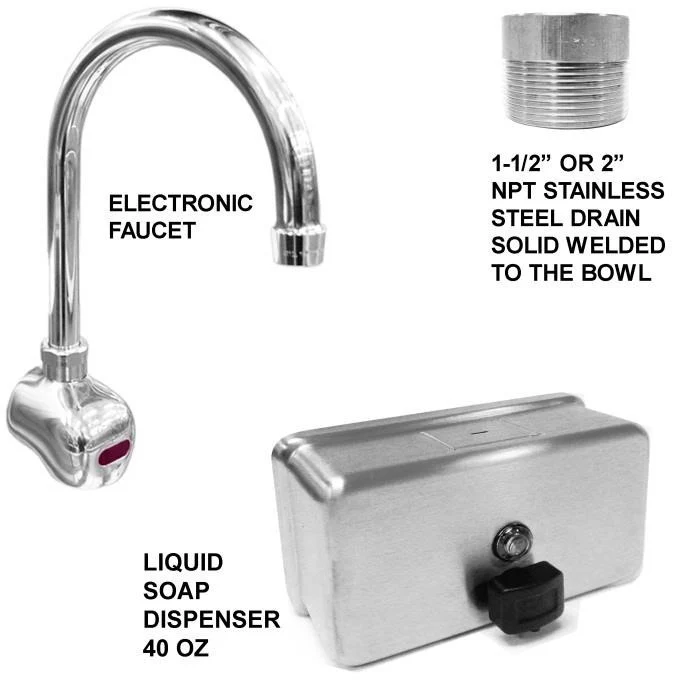

		Electronic Faucet Quantity 3:  Electronic Faucet ADA compliant (**COMPLIES WITH CALIFORNIA LAW AB1953-NO LEAD** ) Durable chrome plated brass faucet  Low-battery indicator light, Sensor range adjustment Chrome-plated tubular brass 6" gooseneck spout with swivel action AC/DC waterproof control module AA batteries (Not Included) 100-240 VAC adapter Temperature hot & cold control mixing water valve Hot and cold supply lines 90 Degree elbow if needed Installation guide
		Soap Dispenser Quantity 2 Stainless Steel 40 Oz Horizontal Soap Dispenser  For Liquid soap only


Mounting:

3	Stainless Steel welded braces at legs 16 gauge (0.0625")diameter 1-5/8" OD at back, left and right sides

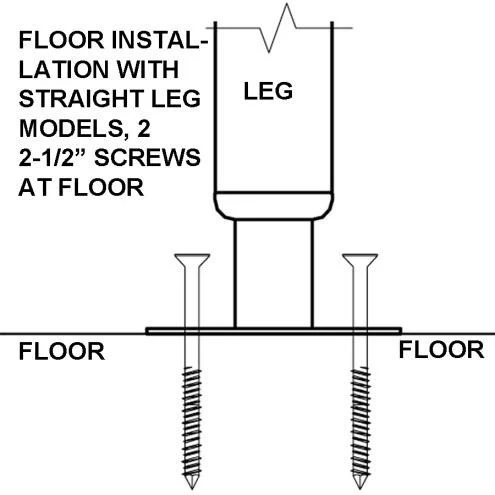

4	Stainless Steel legs welded to sink body and braces, diameter 1-5/8" OD 16ga (0.0625") with adjustable floor plate 1" height,
10	2-1/2" Standard screws



All accessories have a 1-year limited warranty.

Shipping

Estimated Weight: 165 lbs

Estimated Shipping Dimensions: 80" Long x 25" wide 48" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.

PDF

ADA-032E722066H
