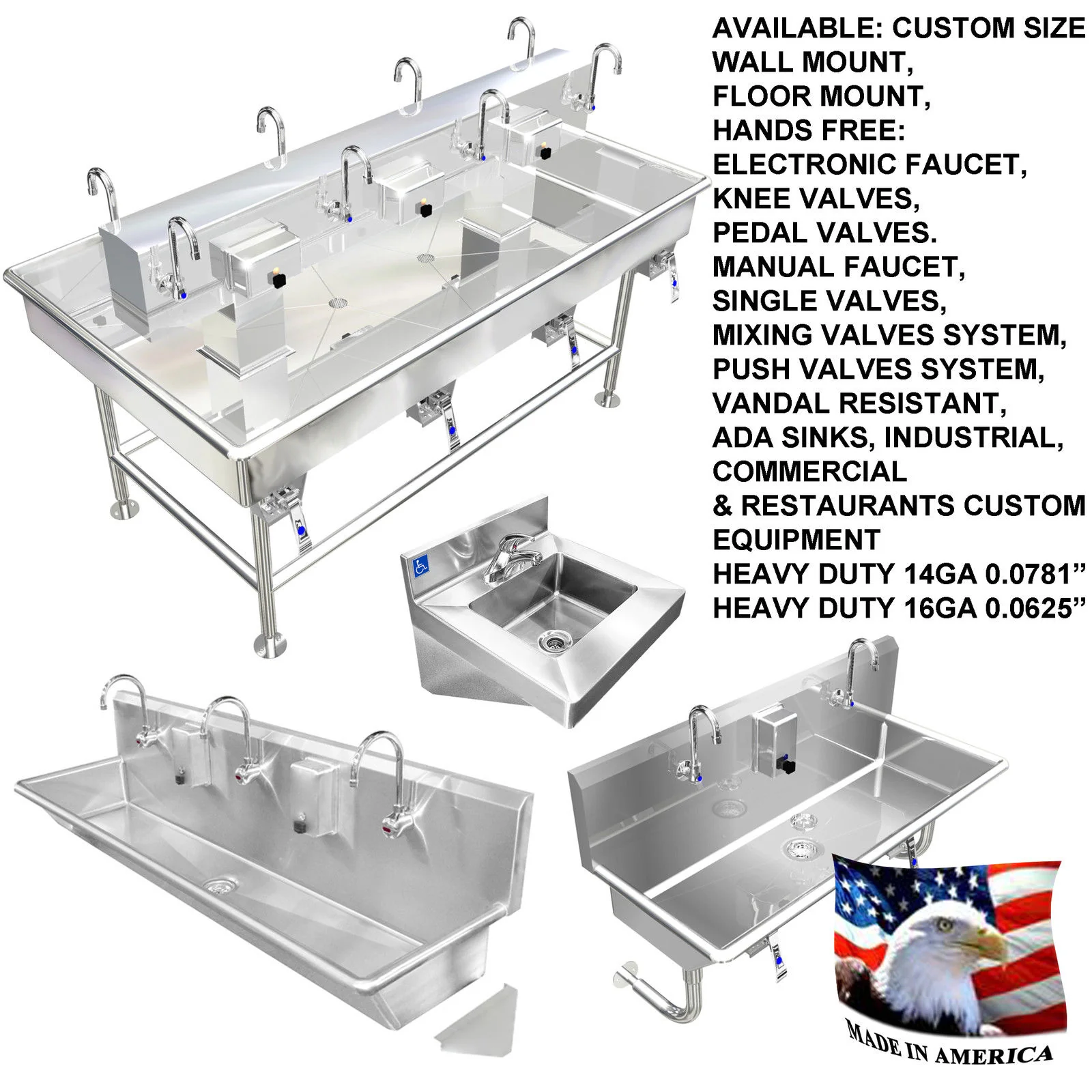

Shop our ADA-compliant stainless steel hand sink line. If you do not see an option you need, please call us! We can fabricate any sink needed.

Model number: ADA-D011F19175B

Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 (0.0781") #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to a brush finish No.4
• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF approved
• ADA Compliant
• Deck Faucet includes
• Soap Dispenser

Dimensions

Sink dimensions for all varieties:

19-3/8" Long x 17" Wide x 5" Deep

Backsplash Dimensions for all varieties

19-3/8" Long x 1" Wide x 5" High

Accessories | Mounting

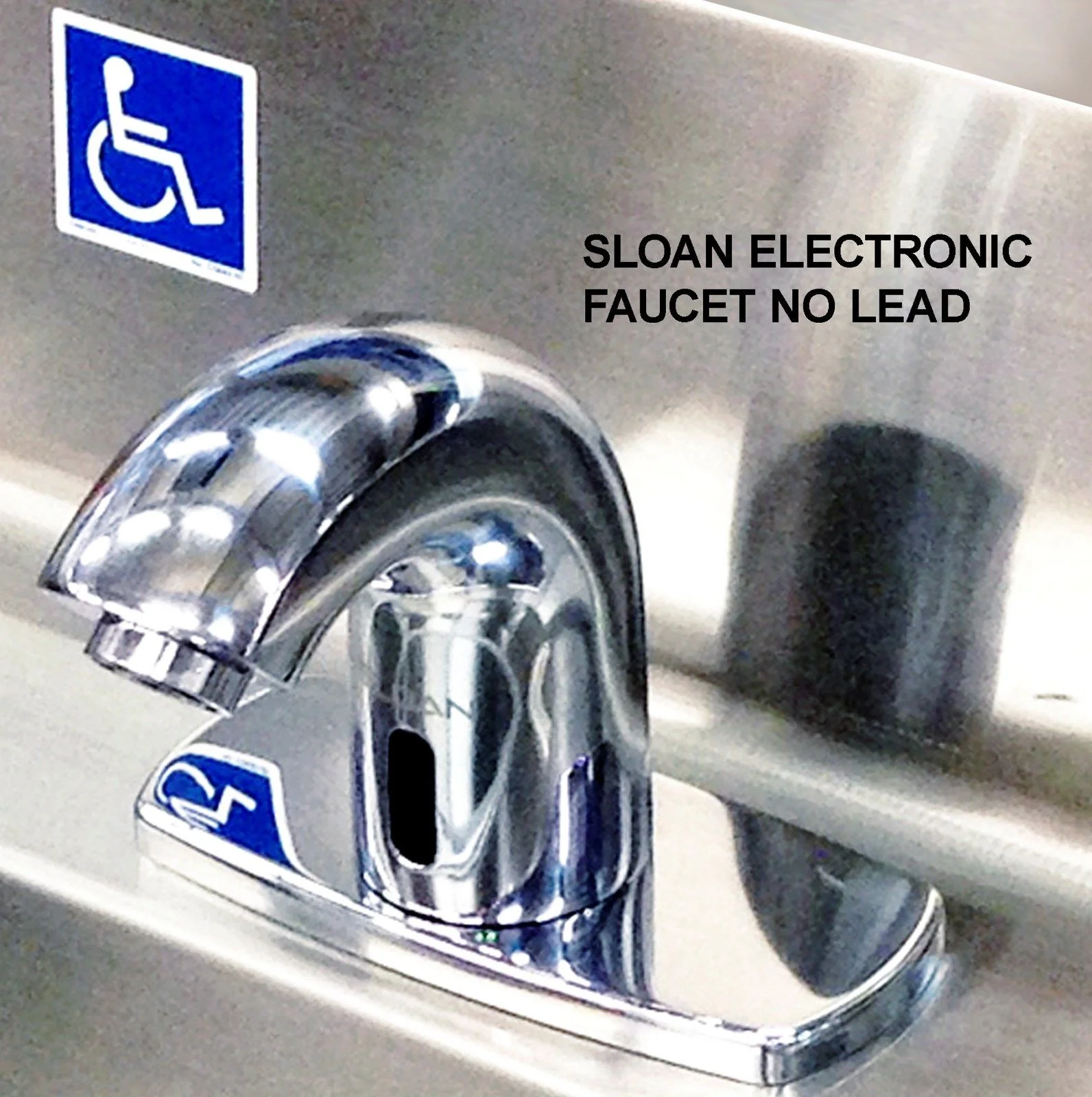

Deck Electronic Faucet		QTY1: Faucet ADA Compliant, Sensor Activated, Electronic, 6 VDC, Chrome Plated Brass, Pedestal Hand Washing Faucet with the following features: Splash-proof Circuit Control Modules Adjustable Infrared Sensor Range 36” (914 mm) Long Sensor Cable 24” (610 mm) Long Flex Hose Filtered Solenoid Valve with serviceable Strainer Filter Bak-Chek® Tee for Hot/Cold Supply 6 VDC Plug-in Adapter (Model SF-2100 only Non-aerated Spray Head needs Four (4) AA-size Batteries ( Not Included)

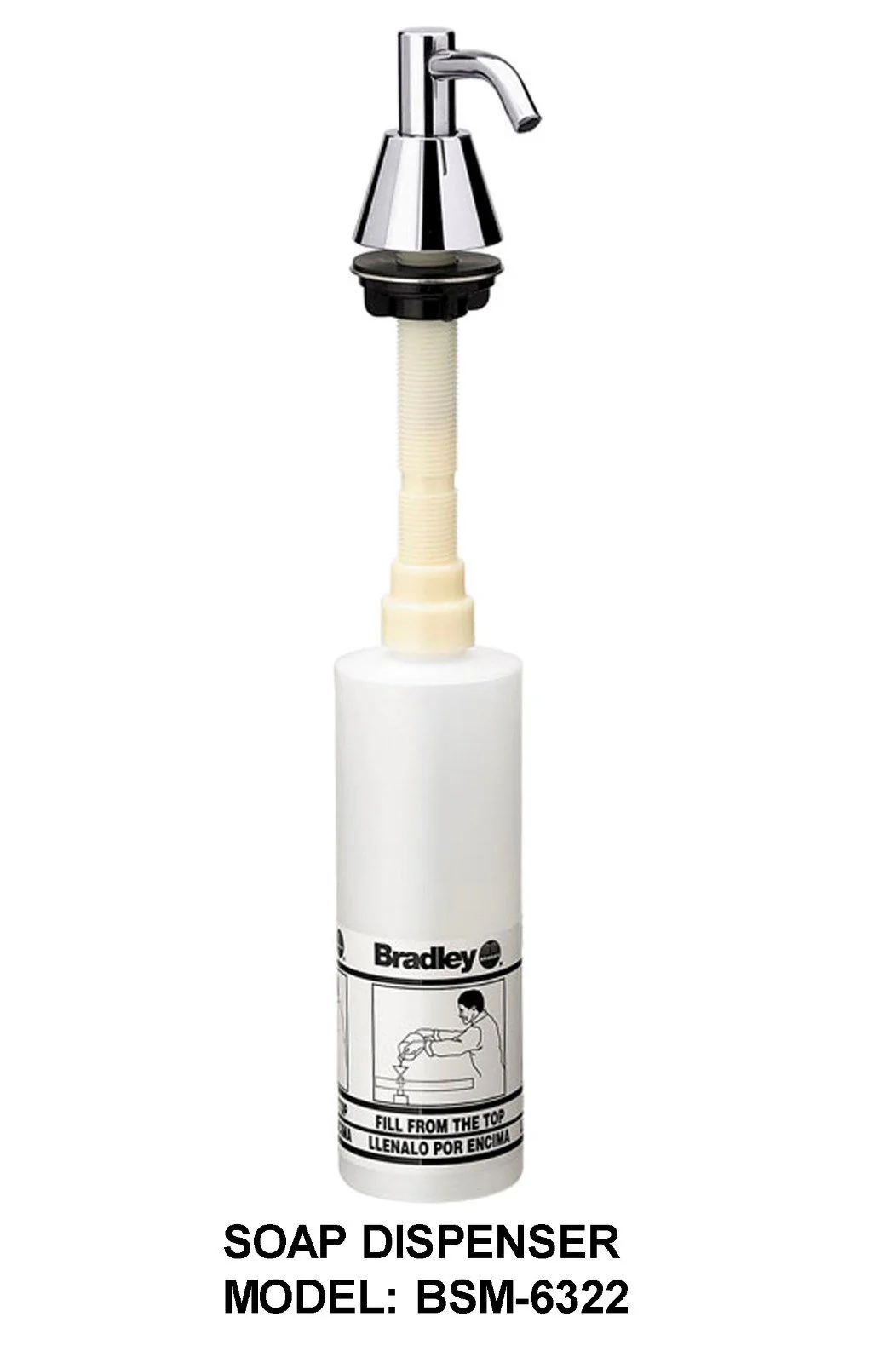

Soap Dispenser:

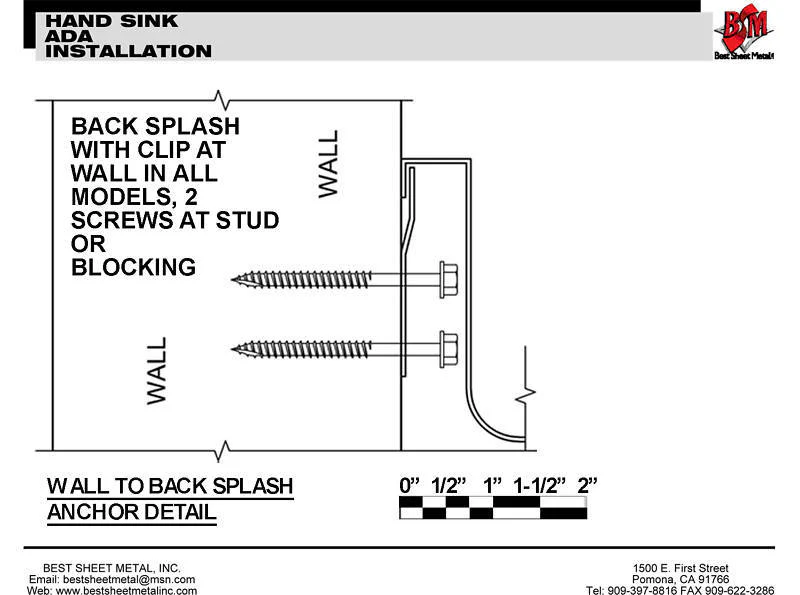

Mounting:

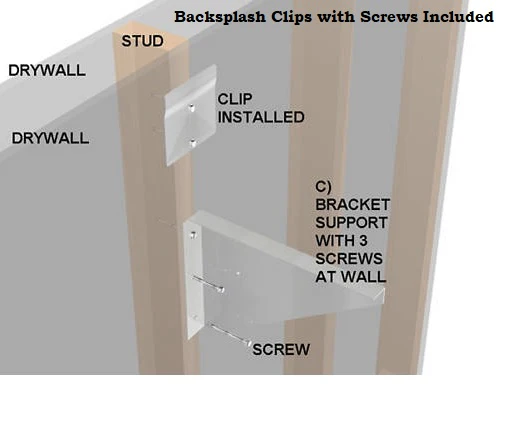

2	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")
2	Stainless Steel Brackets 8" x 10" x 1-5/8" 16ga (0.0625")
10	2-1/2" Standard screws

All accessories have a 1-year limited warranty.

Shipping

Estimated Weight: 39 lbs

Estimated Shipping Dimensions: 24" Long x 24" wide 24" Height

Sinks that are 24" or smaller are shipped via FedEx Ground and have standard shipping costs.This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.

PDF

ADA-D011F19175B
