Shop our ADA Compliant Elite line stainless steel sinks. If you do not see an option you need, please call us! We can fabricate any sink needed.



Model Number: 035EE36215BO



Features

• Made from 14 gauge (0.0781")  Heavy-Duty Stainless Steel Type 304 #4
• Made in The USA
• Fully seamless welded corners
• Fully polished to a brush finish No. 4

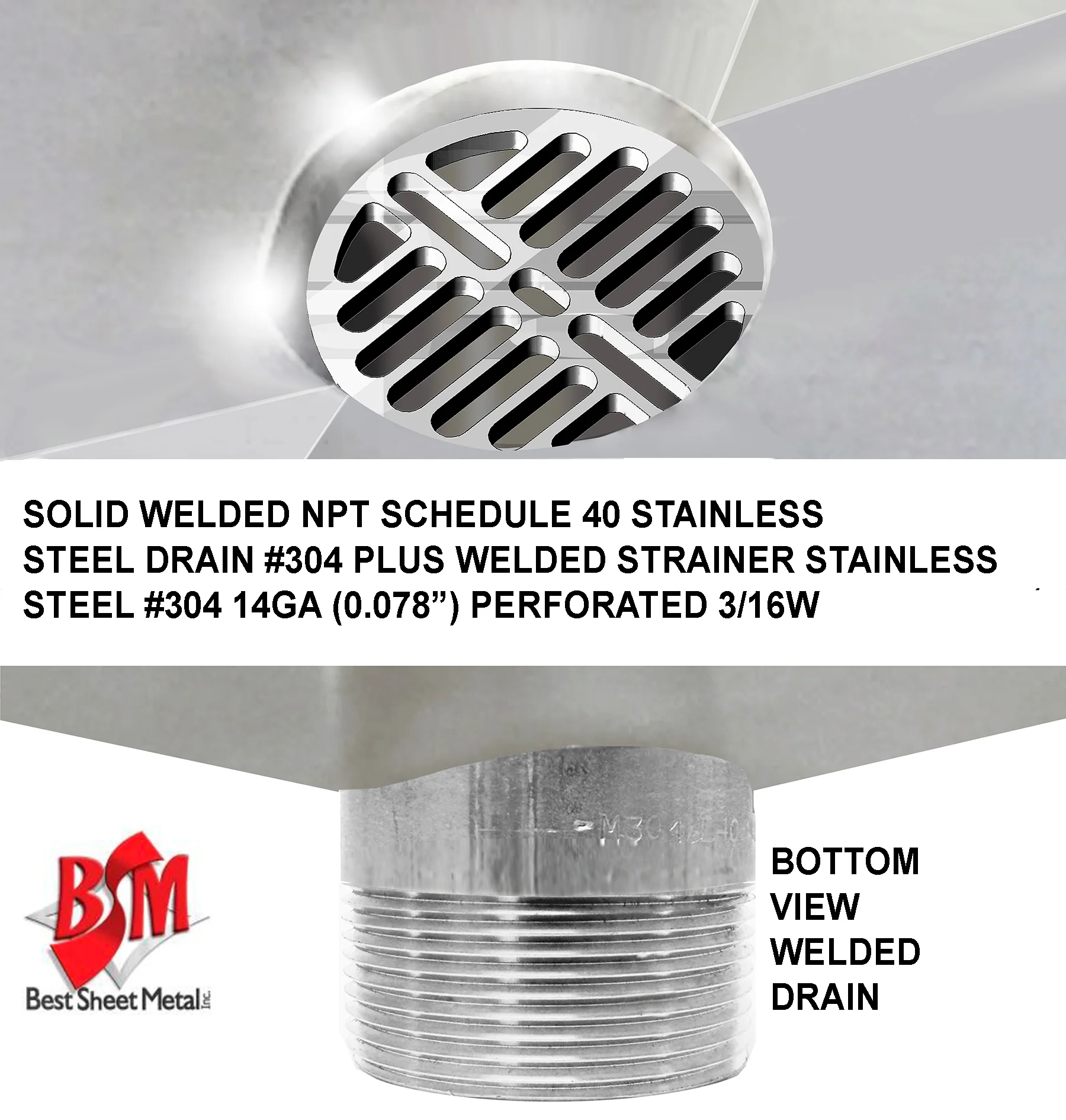

• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF Approved
• Wall Mounted
• Elite Line
• With low profile backsplash for mirror ADA code 1127A.8.3.
• Total height 39" from floor to top of backsplash
• Includes holes shown on plans. For custom holes, please contact us.

Dimensions

Sink dimensions for all varieties:

36" Long x 21" Wide x 5" Deep

Back Splash Dimensions for all varieties

36" Long x 2" Wide x 5" High

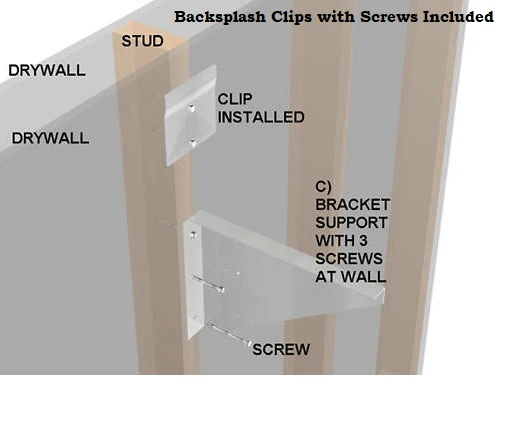

 Mounting

3	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")
2	Stainless Steel Brackets 1-5/8" X 8" X 11" 16ga (0.0625")
12	2-1/2" Standard screws



Shipping

Estimated Weight: 80 lbs

Estimated Shipping Dimensions: 42" Long x 24" wide 29" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
