Shop today for one of our most reliable and sturdiest commercial restaurant sinks. All of our restaurant sinks come in 14 Gauge.

Our range is very customizable. If you do not see an option you would like, contact us today. We can provide you with a quote.

Model Number: S8430-1-362414-2DBLR



Features

Our sinks are crafted with the highest quality materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to brush finish No. 4
• Fully welded 3-1/2" Drain
• Made to the standard restaurant specifications
• ETL and NSF approved
• 2 Drainboards

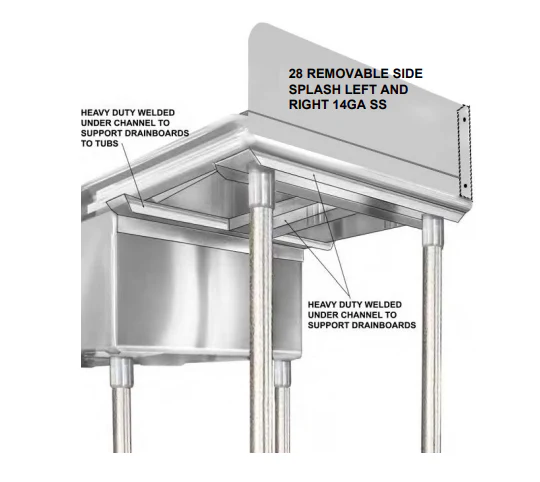

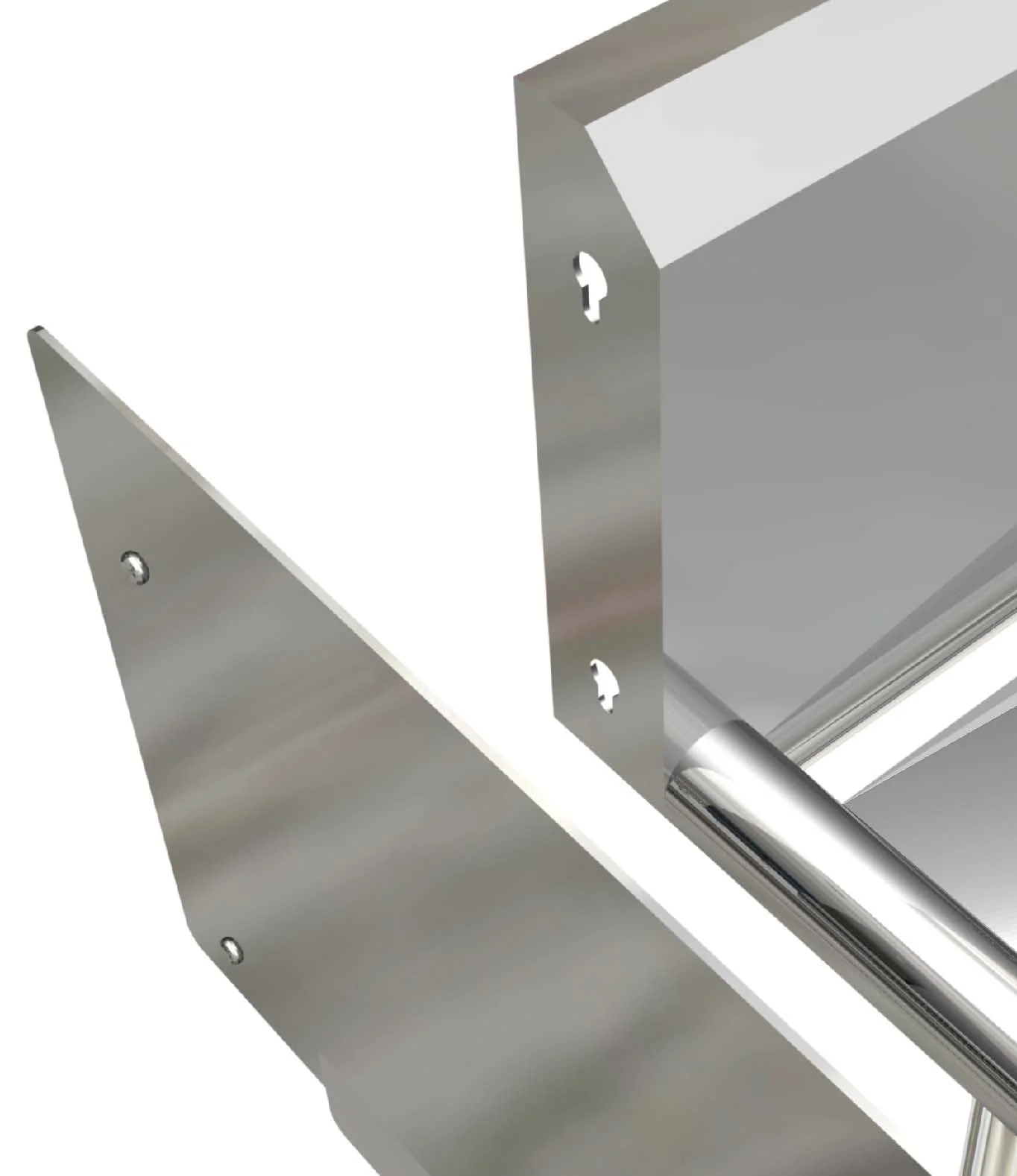

• Fixed Welded Splashes
• Optional Shelves Available - Please contact us if interested.
• QTY 2: Holes 1" diameter at center backsplash 8".

Dimensions

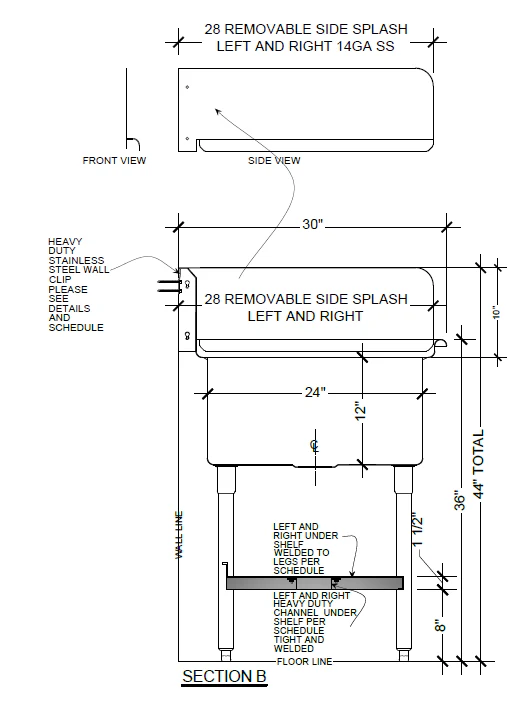

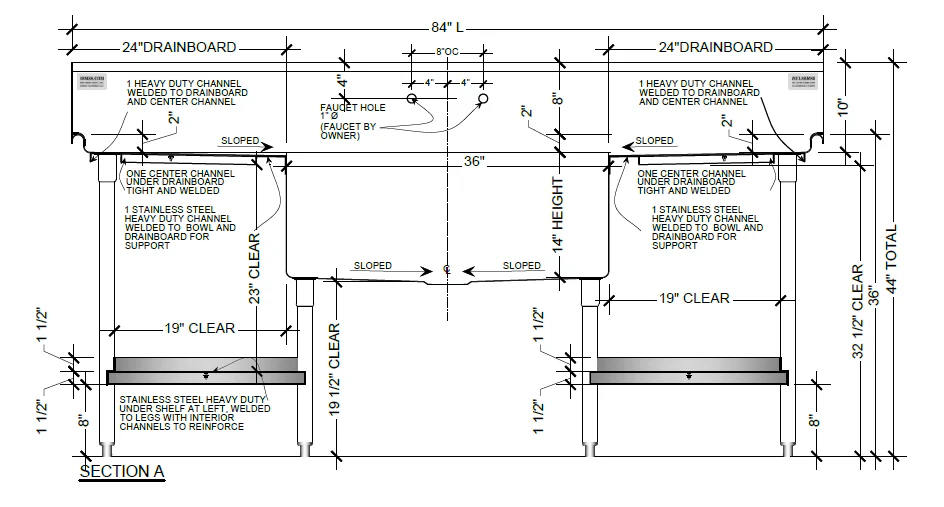

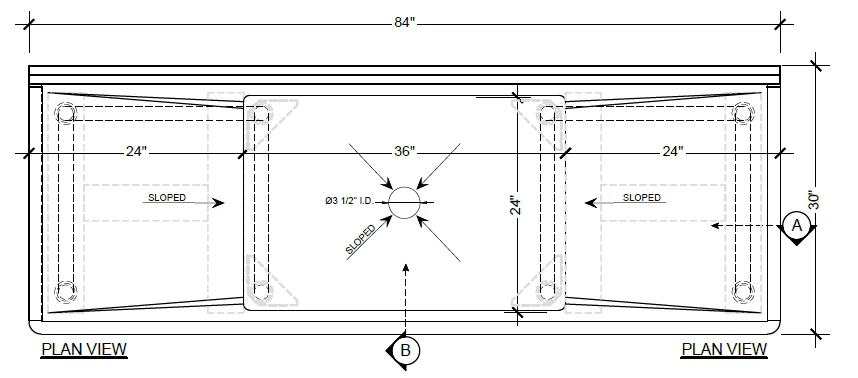

Over All Dimension: 84" L x 30"W x 44" HEIGHT

Bowl Dimensions:  36"L x 24"W x 14"D

Drainboards Dimensions:  24"L

Accessories

 All restaurant sinks ordered include a standard 3-1/2" drain.



Holes: for the punched-in holes, you can specify if you would like them in a different position or the quantity you would like.

Mounting:

4	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")
8	Stainless Steel legs diameter 1-5/8" OD 14 ga (0.0625")with adjustable bullet shape feet base 1" height, with solid welded, braced each pair with 1-5/8" OD Stainless Steel channel 6" over the floor
8	2-1/2" Standard screws



Shipping

Estimated Weight: 300 lbs

Estimated Shipping Dimensions: 90" Long x 37" wide 56" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
