H.D. 14GA Multi-Station Wash up Sink, 60" | ADA-030E602065H

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9

H.D. 14GA Multi-Station Wash up Sink, 60" | ADA-030E602065H

H.D. 14GA Multi-Station Wash up Sink, 60" | ADA-030E602065H

Shop our ADA-compliant commercial stainless steel wash-up sink. If you do not see an option you need, please call us! We can fabricate any sink needed. (909) 397-8816


Model Number: ADA-030E602065H





Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

  • Made from 14 gauge (0.0781")  Heavy-Duty Stainless Steel Type 304 #4
  • Made in The USA
  • Fully seamless welded corners
  • Fully polished to a brush finish No. 4
  • Fully welded 1-1/2" Drain with fixed screen
  • ETL and NSF Approved
  • ADA Compliant
  • With low profile backsplash for mirror ADA code 1127A.8.3.

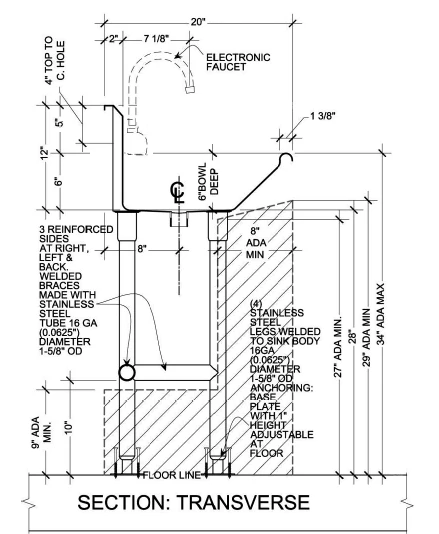

  • Total height 39" from floor to top of backsplash
  • Includes Electronic Faucets
  • Free Standing with 4 Stainless Steel Straight Legs
Dimensions

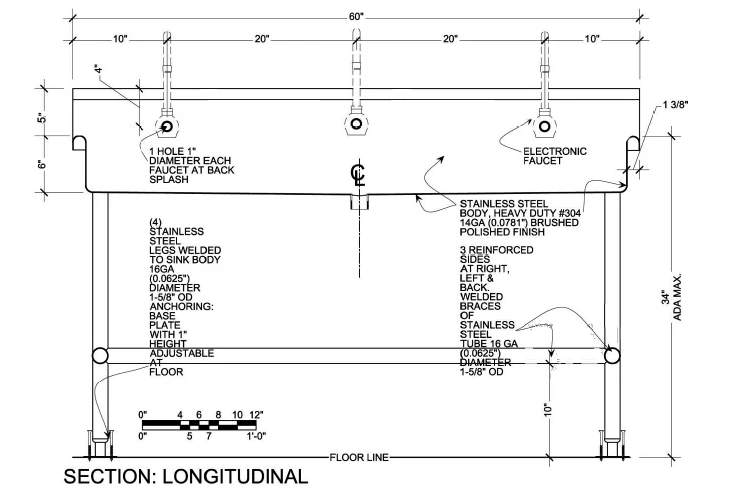

Sink dimensions:

60" Long x 20" Wide x 6" Deep

Back Splash Dimensions:

60" Long x 2" Wide x 5" High



Accessories

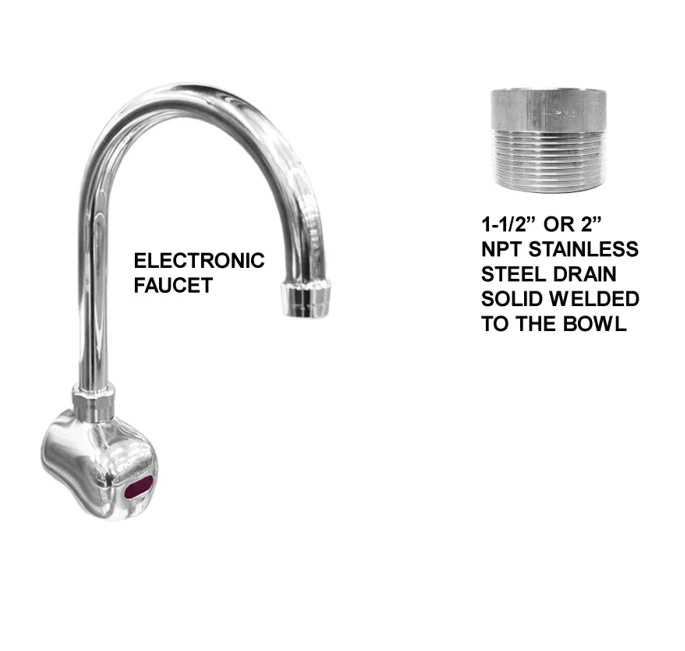

Electronic Faucet
Quantity 3
  • Electronic Faucet ADA compliant (**COMPLIES WITH CALIFORNIA LAW AB1953-NO LEAD** )
  • Durable chrome plated brass faucet
  • Low-battery indicator light, Sensor range adjustment
  • Chrome-plated tubular brass 6" gooseneck spout with swivel action
  • AC/DC waterproof control module
  • AA batteries (Not Included)
  • 100-240 VAC adapter
  • Temperature hot & cold control mixing water valve
  • Hot and cold supply lines
  • 90-degree elbow if needed
  • Installation guide





All accessories have a 1-year limited warranty.

Mounting

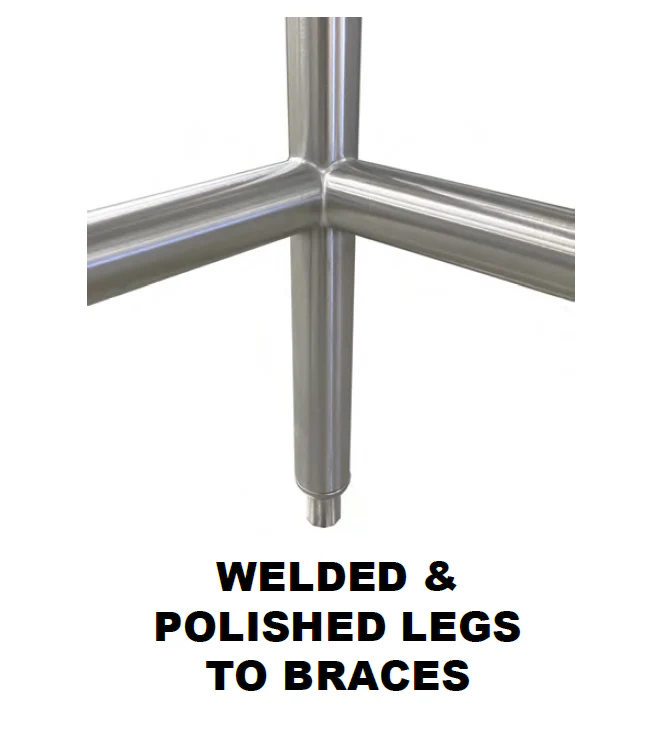

3 Stainless Steel welded braces at legs16 gauge (0.0625")diameter 1-5/8" OD at back, left and right sides
4 Stainless Steel legs welded to sink body and braces, diameter 1-5/8" OD 16ga (0.0625")
with adjustable floor plate 1" height,
10 2-1/2" Standard screws

Shipping

Estimated Weight: 150 lbs

Estimated Shipping Dimensions: 72" Long x 24" wide 29" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
