Shop our ADA compliant stainless steel sink line. If you do not see an option you need, please call us! We can fabricate any sink needed.

Model numbers: ADA-050E1442066B



Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 gauge (0.0781")  Heavy-Duty Stainless Steel Type 304 #4
• Made in The USA
• Fully seamless welded corners
• Fully polished to a brush finish No. 4

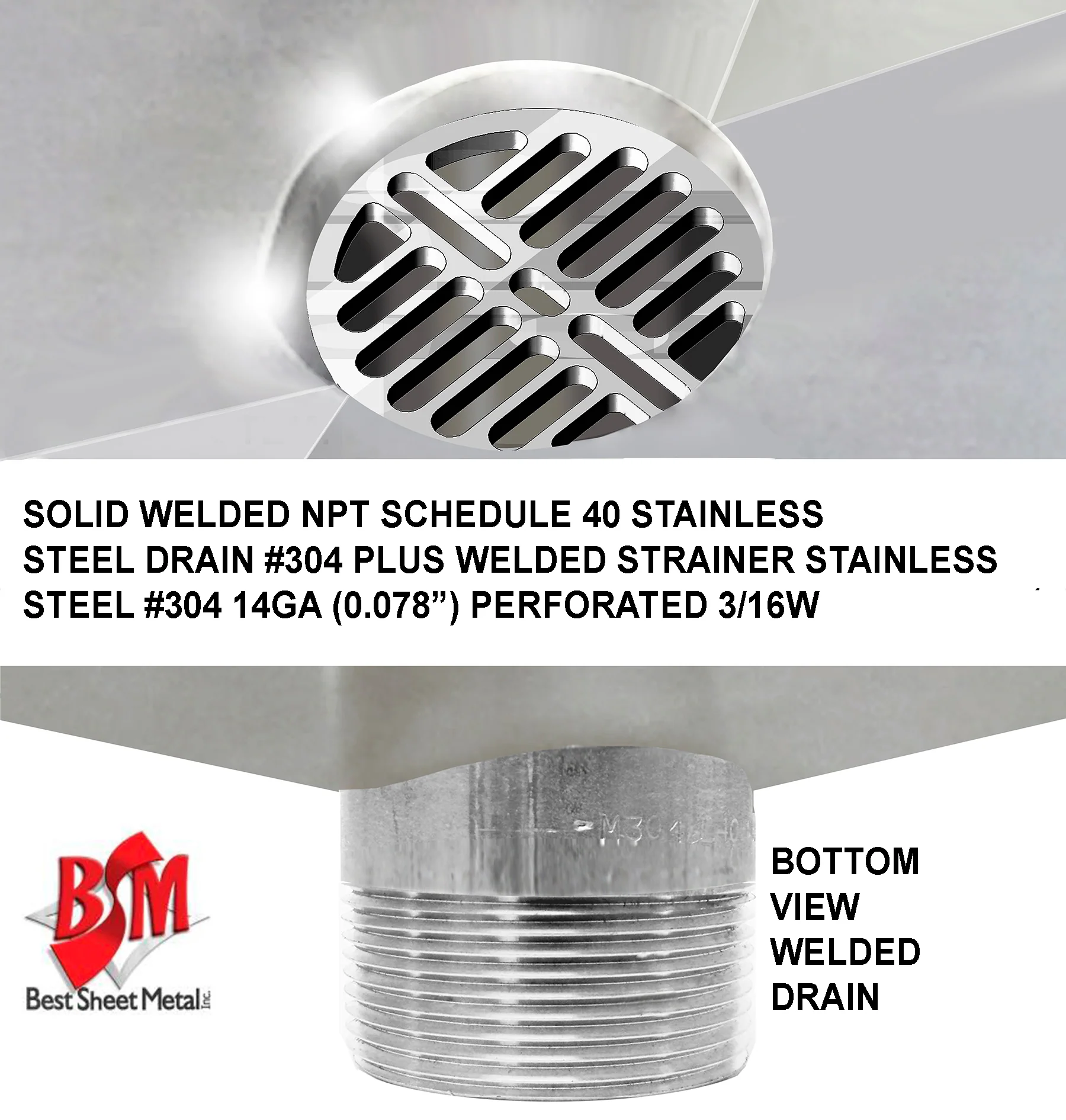

• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF Approved
• Includes Electronic Faucets
• Wall Mounted with wall brackets

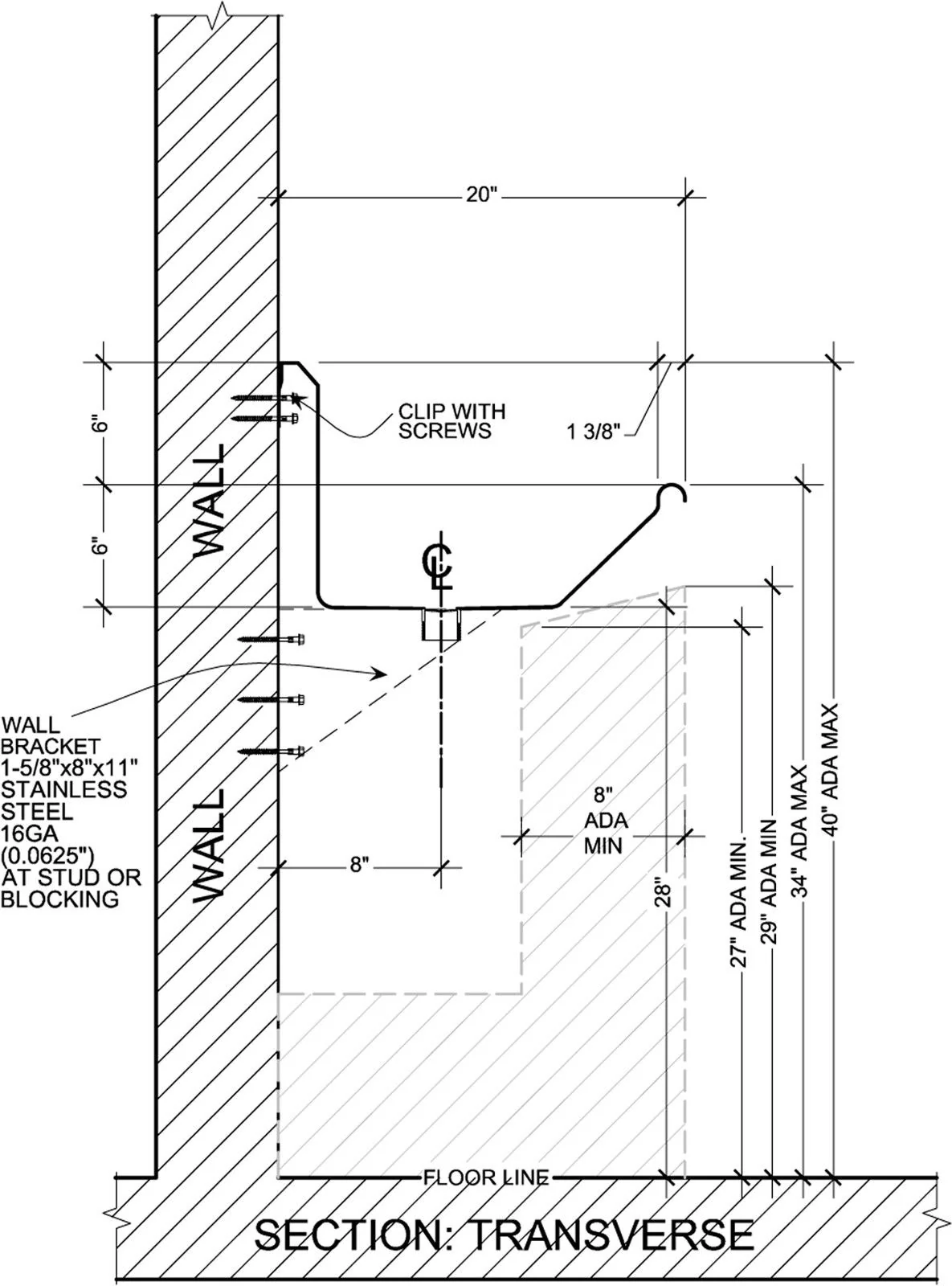

Dimensions

Sink dimensions:

144" Long x 20" Wide x 6" Deep

Back Splash Dimensions for all varieties

144" Long x 2" Wide x 6" High



Accessories | Mounting

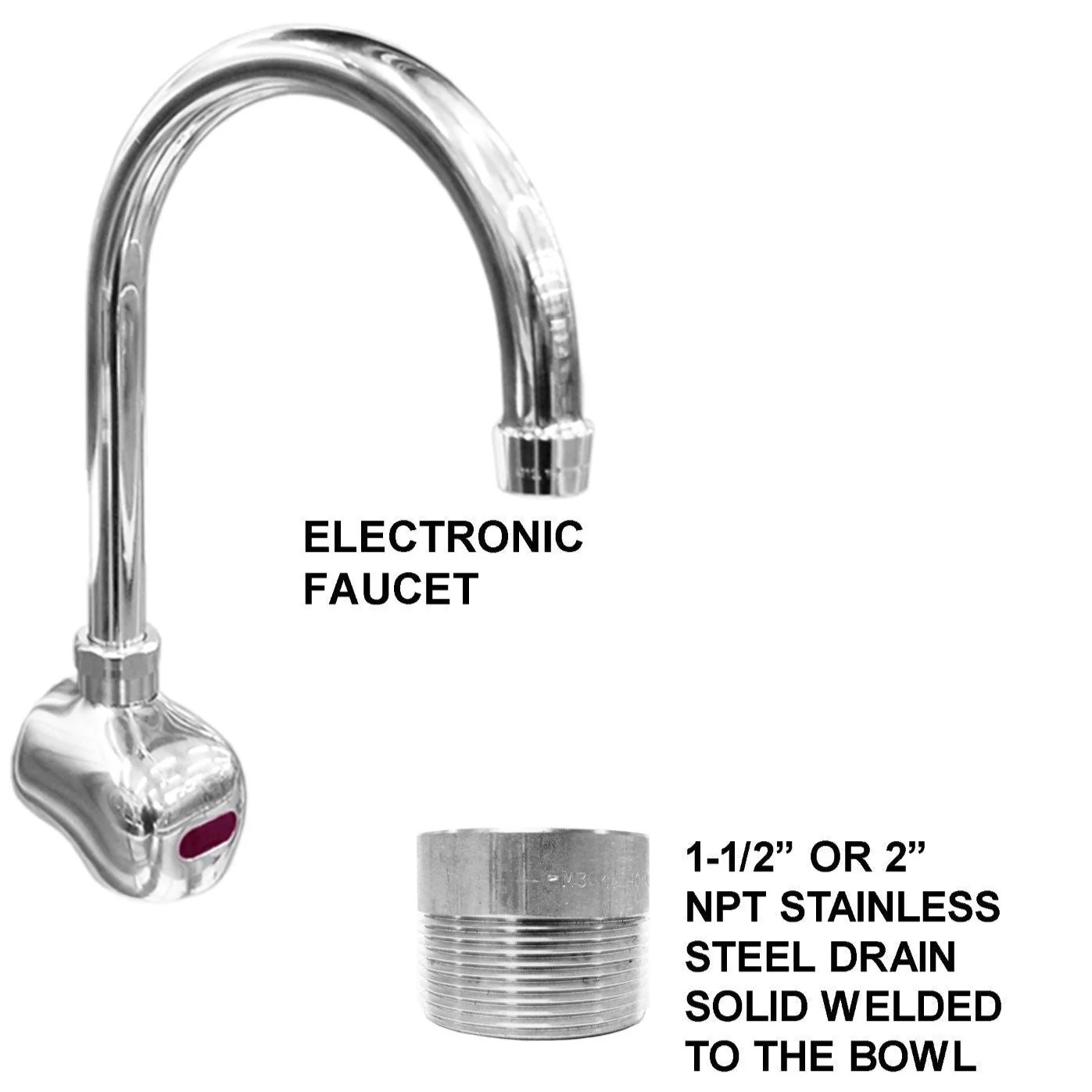

Electronic Faucet

• Electronic Faucet ADA compliant (**COMPLIES WITH CALIFORNIA LAW AB1953-NO LEAD** )

• Durable chrome plated brass faucet bodies

• Low-battery indicator light, Sensor range adjustment

• Chrome plated tubular brass 6" gooseneck spout with swivel action

• AC/DC waterproof control module

• AA batteries

• 100-240 VAC adapter

• Temperature hot & cold control mixing water valve

• 90 Degree elbow

• Hot and cold supply lines

• Installation guide

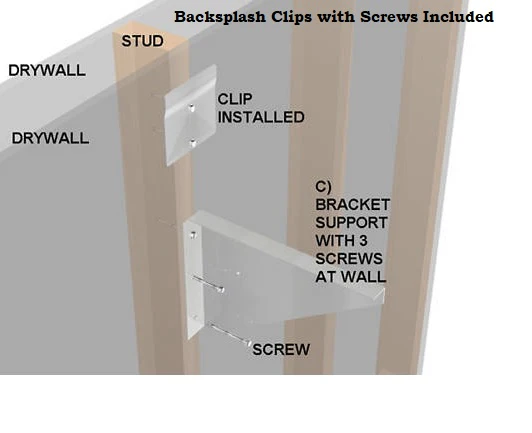

Mounting:

5	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")
2	Stainless Steel Brackets 8" x 10" x 1-5/8" 16ga (0.0625")
16	2-1/2" Standard screws

All accessories have a 1-year limited warranty.

Shipping

Estimated Weight: 240 lbs

Estimated Shipping Dimensions: 147" Long x 25" wide 30" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.

PDF

ADA-050E1442066B
