H.D. 14GA Multi-Station Wash up Sink, 100" | 054E100208R2

H.D. 14GA Multi-Station Wash up Sink, 100" | 054E100208R2

Shop our 100" model stainless steel sink. If you do not see an option you need, please call us! We can fabricate any sink needed.


Model Number: 054E100208R2


Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

  • Made from 14 gauge (0.0781")  Heavy-Duty Stainless Steel Type 304 #4
  • Made in The USA
  • Fully seamless welded corners
  • Fully polished to a brush finish No. 4

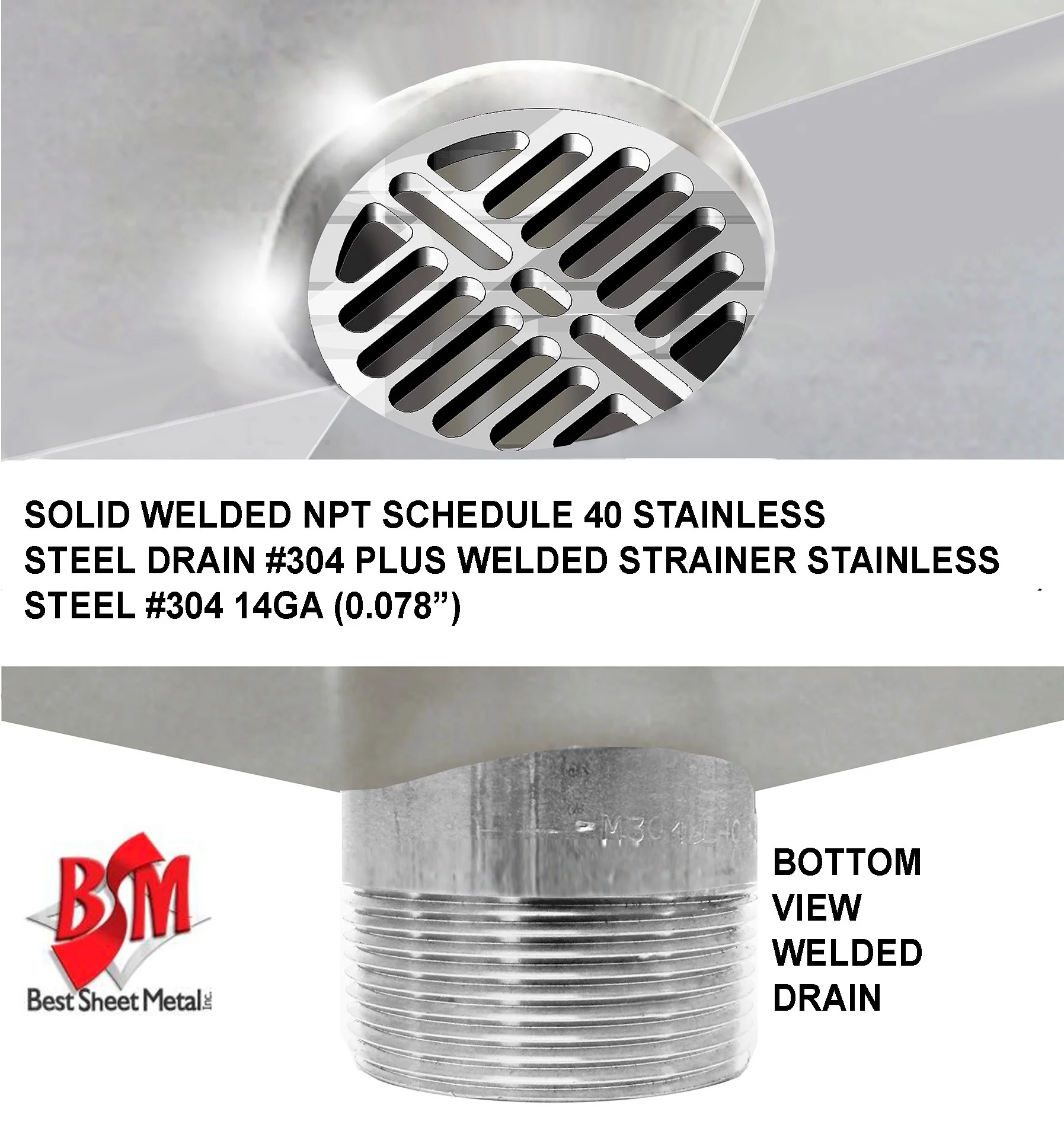

  • Fully welded 1-1/2" Drain with fixed screen
  • ETL and NSF Approved
  • Includes Electronic Faucets
  • Wall Mounted with round tube brackets
Dimensions

Sink dimensions for all varieties:

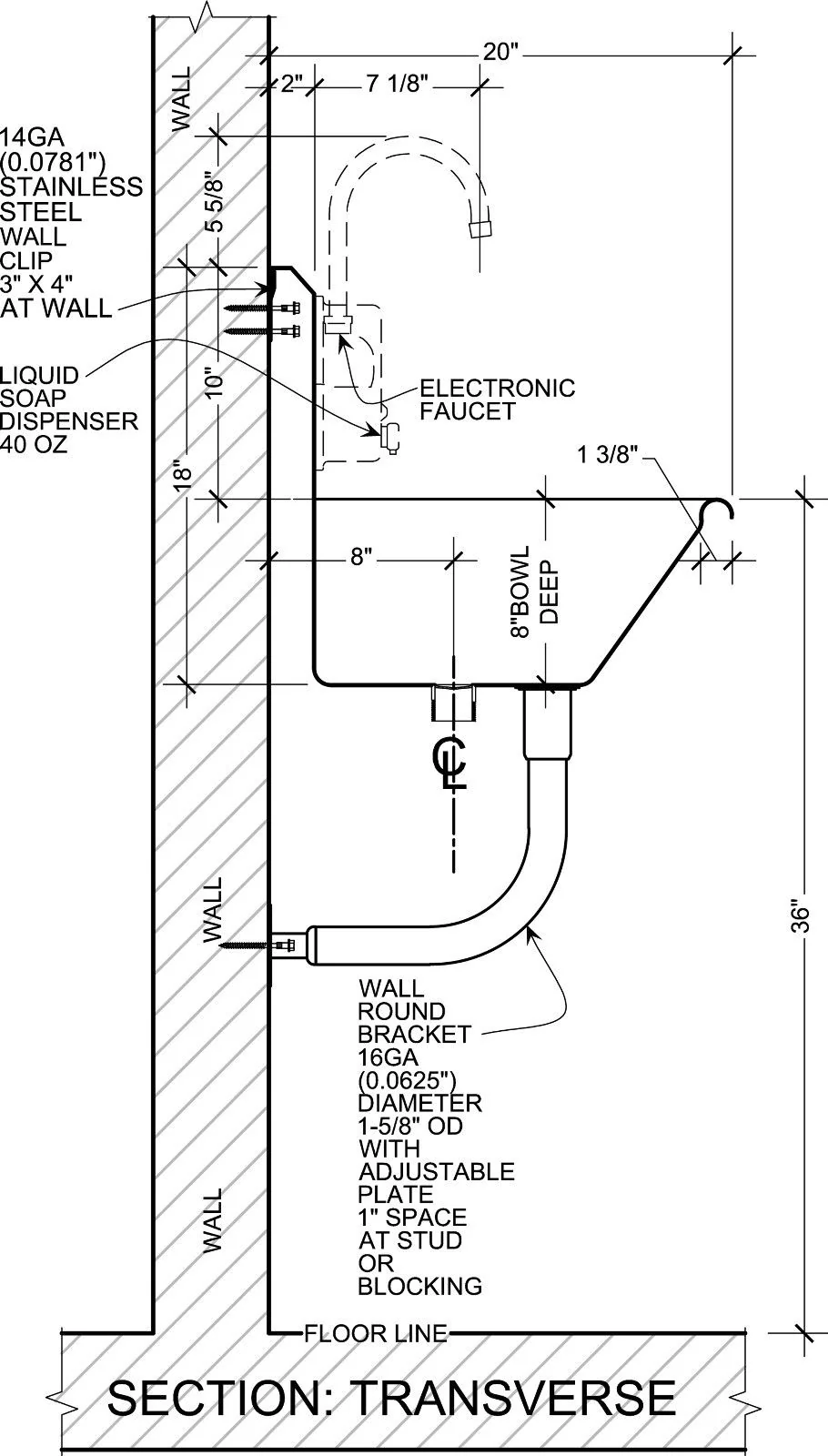

100" Long x 20" Wide x 8" Deep

Back Splash Dimensions for all varieties

100" Long x 20" Wide x 10" High


Accessories

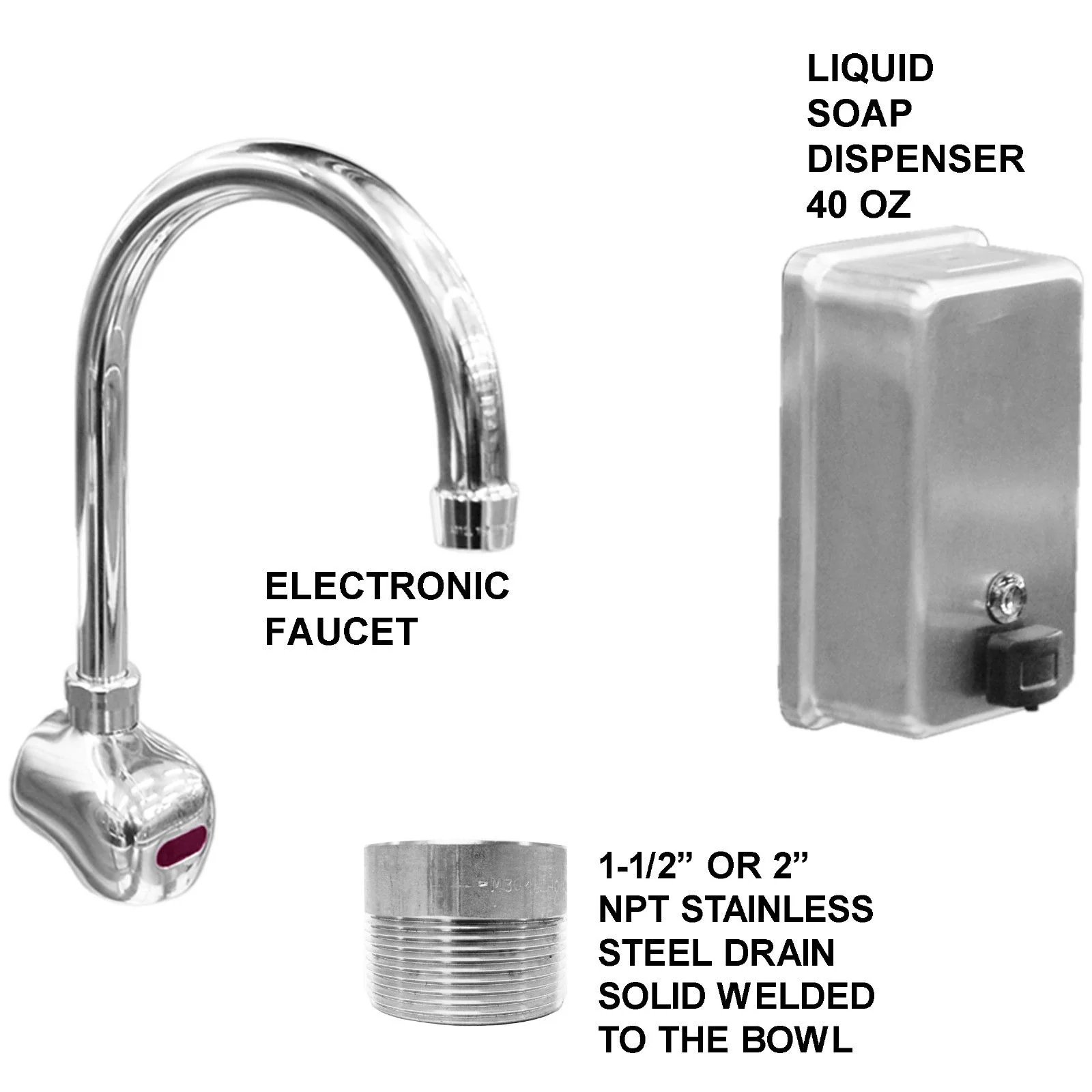

Electronic Faucet

Quantity 5:



  • Electronic Faucet ADA compliant (**COMPLIES WITH CALIFORNIA LAW AB1953-NO LEAD** )
  • Durable chrome plated brass faucet
  • Low-battery indicator light, Sensor range adjustment
  • Chrome-plated tubular brass 6" gooseneck spout with swivel action
  • AC/DC waterproof control module
  • AA batteries (Not Included)
  • 100-240 VAC adapter
  • Temperature hot & cold control mixing water valve
  • Hot and cold supply lines
  • 90 Degree elbow if needed
  • Installation guide


Soap Dispenser

Quantity 4


  • Stainless Steel 40 Oz Soap Dispenser
  • Liquid Soap Only





All accessories have a 1-year limited warranty.

Mounting


5

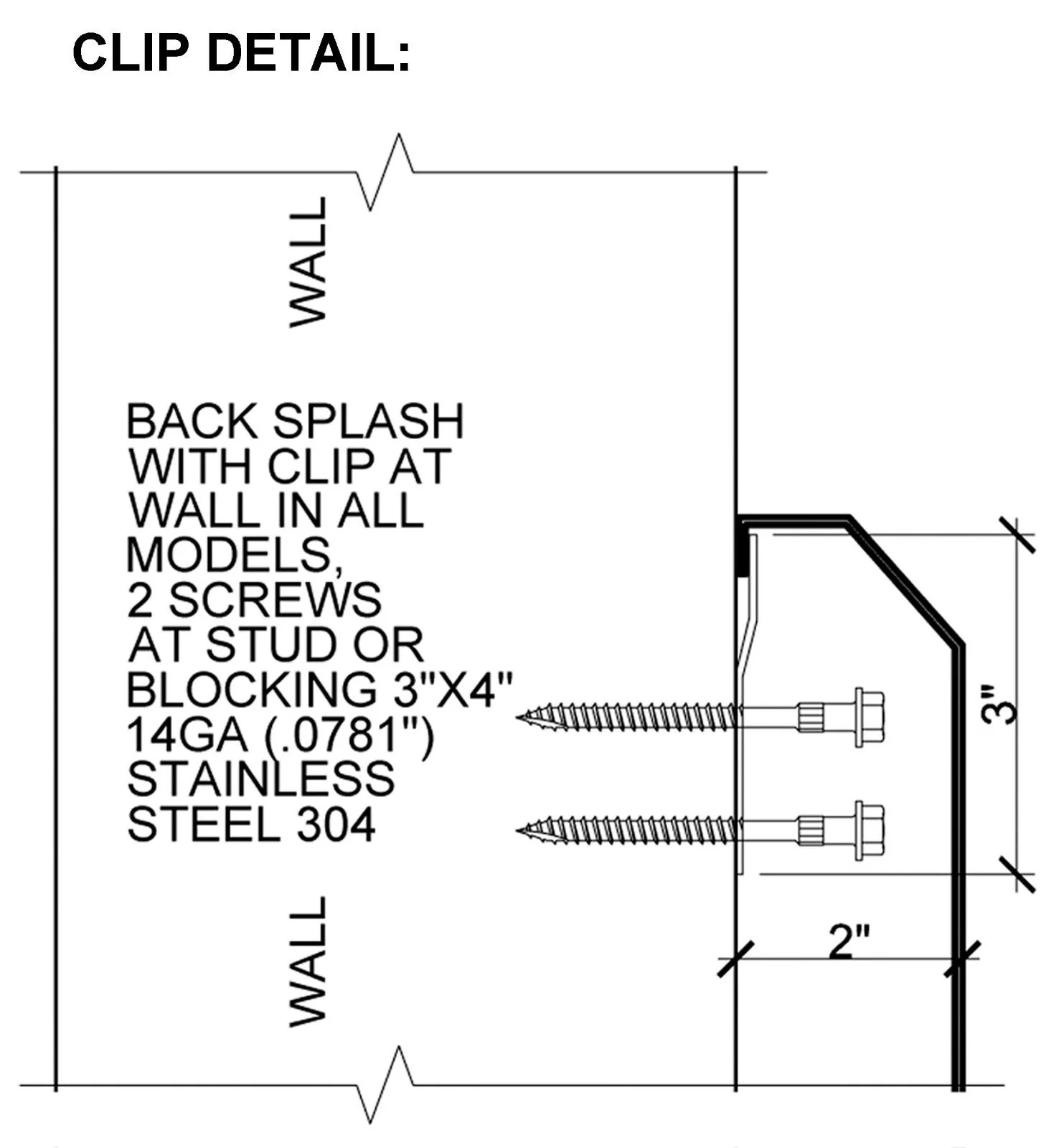

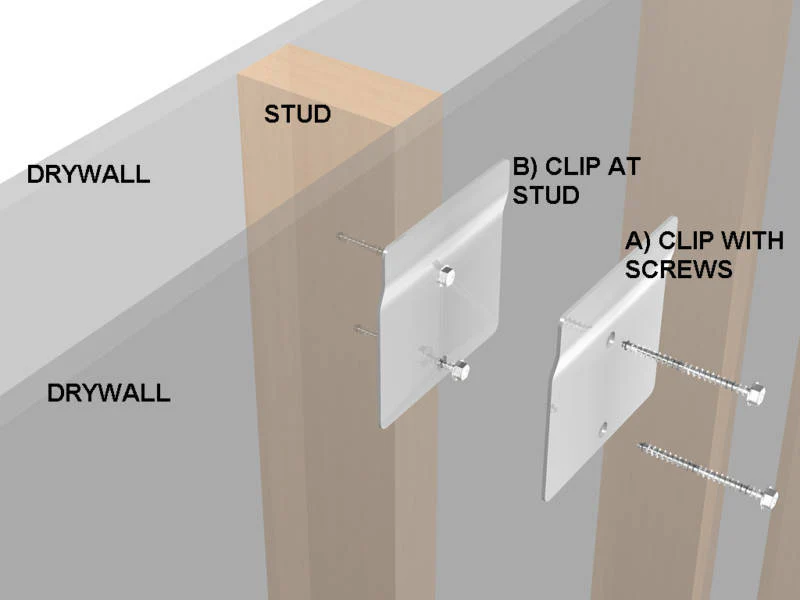

Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")

2

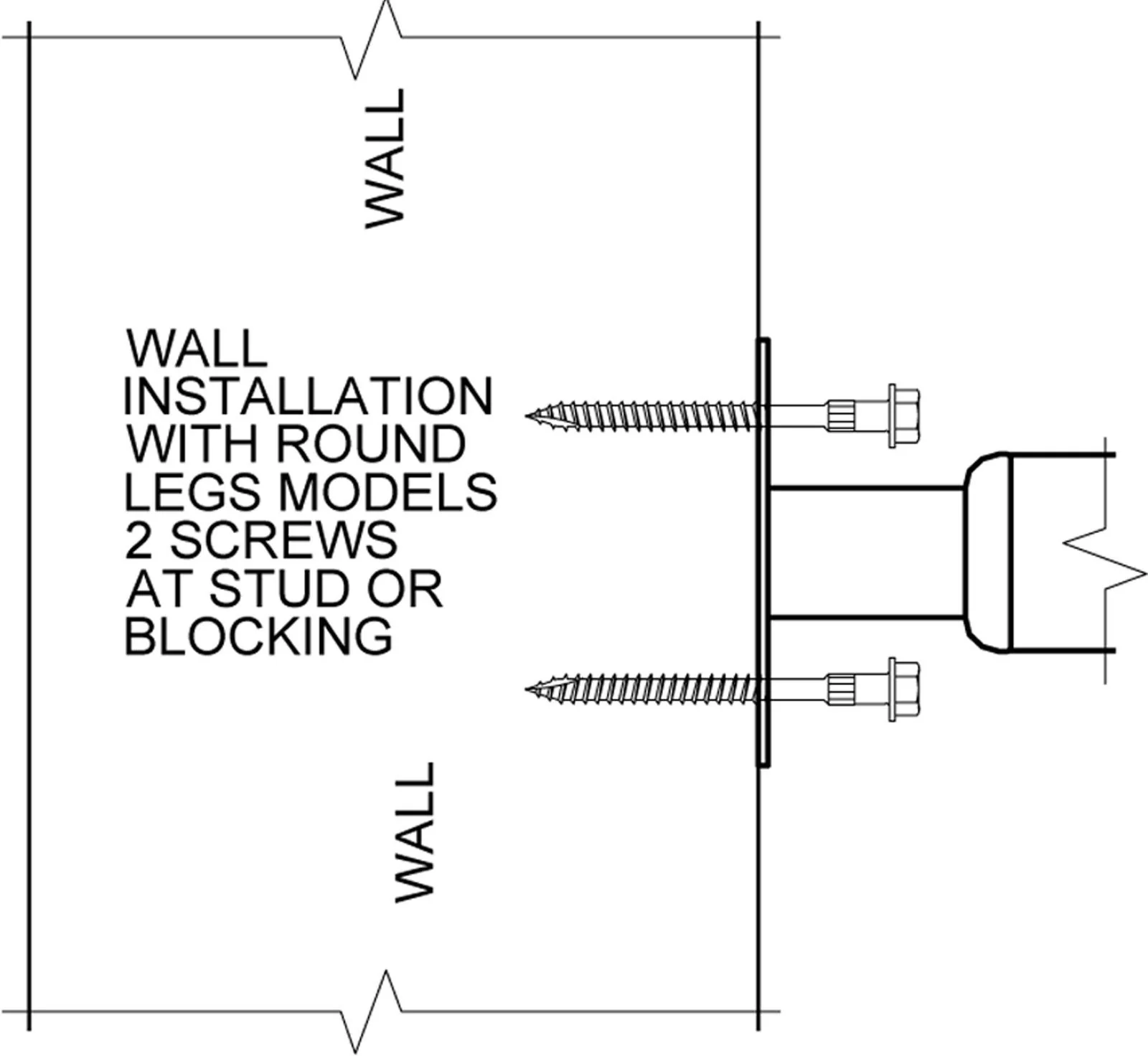

Stainless Steel Round Brackets (or Round Legs) diameter 1-5/8" OD 16ga (0.0625") with adjustable wall plate 1"

14

2-1/2" Standard screws
Shipping

Estimated Weight: 216 lbs

Estimated Shipping Dimensions: 100" Long x 25" wide 30" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes
