Shop today one of our most reliable and sturdiest commercial restaurant sinks. All of our restaurant sinks come in 14 Gauge.

Our range is very customizable. If you do not see an option you would like, contact us today. We can provide you with a quote.

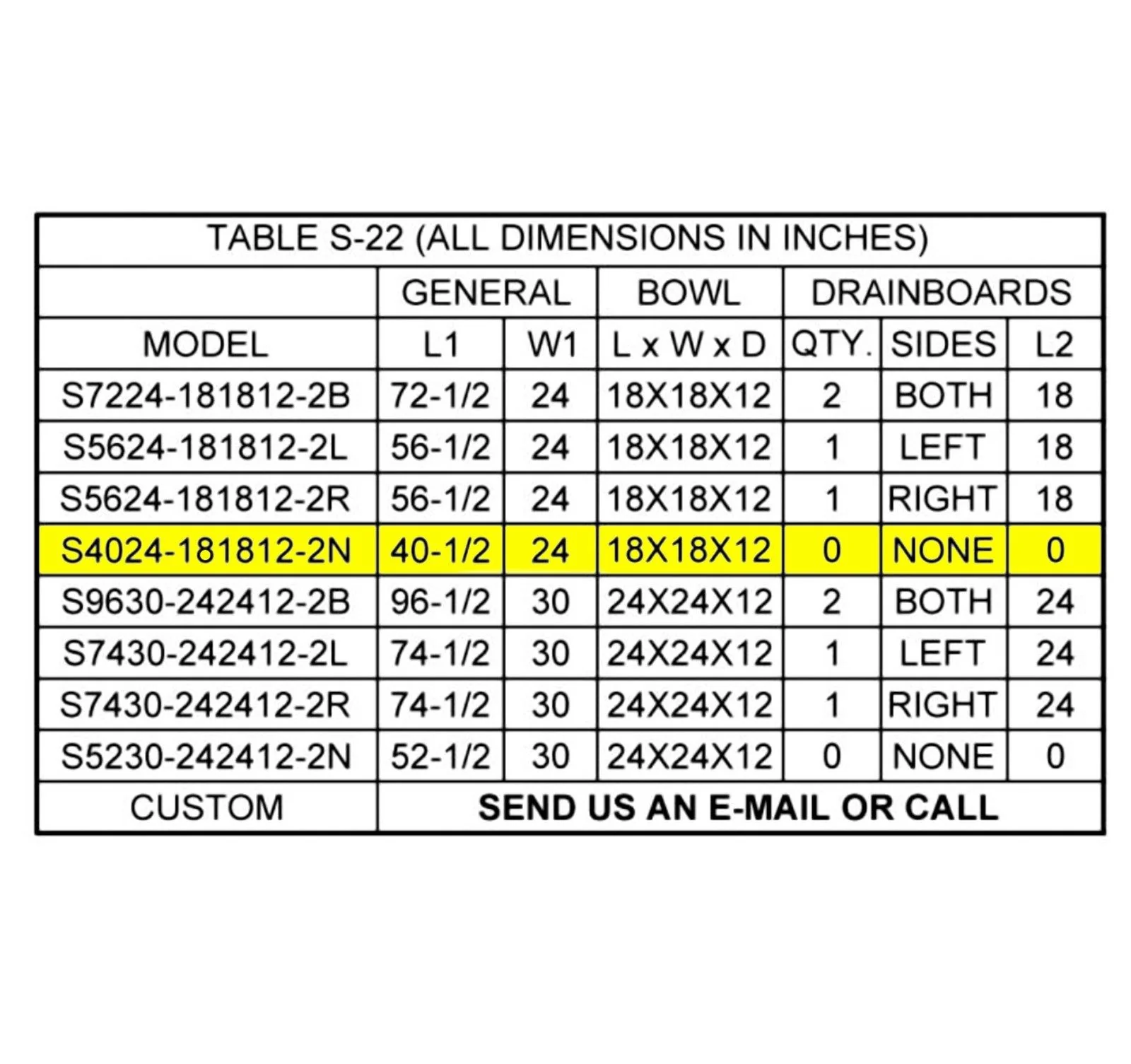

Model Number: S4024-181812-2N

Features

Our sinks are crafted with the highest quality materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14  Gauge Heavy-Duty Stainless Steel Type 304 #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to a brush finish No. 4
• Fully welded 3-1/2" Drain
• Made to the standard restaurant specifications
• ETL and NSF approved
• QTY 2: Holes 1" diameter at center backsplash 8" on centers, per shop drawing (check pdf file) or customer request.

Dimensions

Over All Dimension:40-1/2" L x 24"W x 44" HEIGHT
Dimension: 40-1/2" L x 24" W x 36" TOP HEIGHT
Back Splash Dimension: 40-1/2" L x 2"W x 10"H

Quantity 2: Bowl 18" x 18" x 12"deep



Accessories

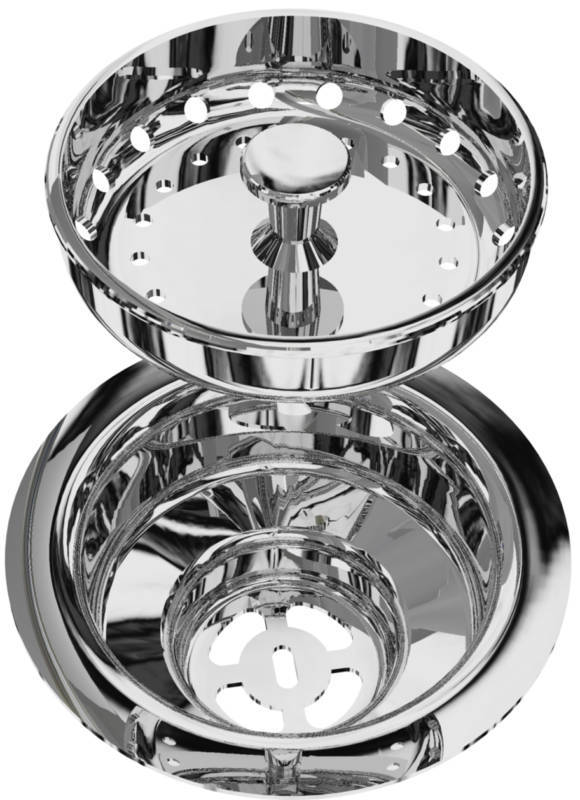

 All restaurant sinks ordered include a standard 3-1/2" drain.



Holes: for the punched-in holes, you can specify if you would like them in a different position or the quantity you would like.

Mounting:

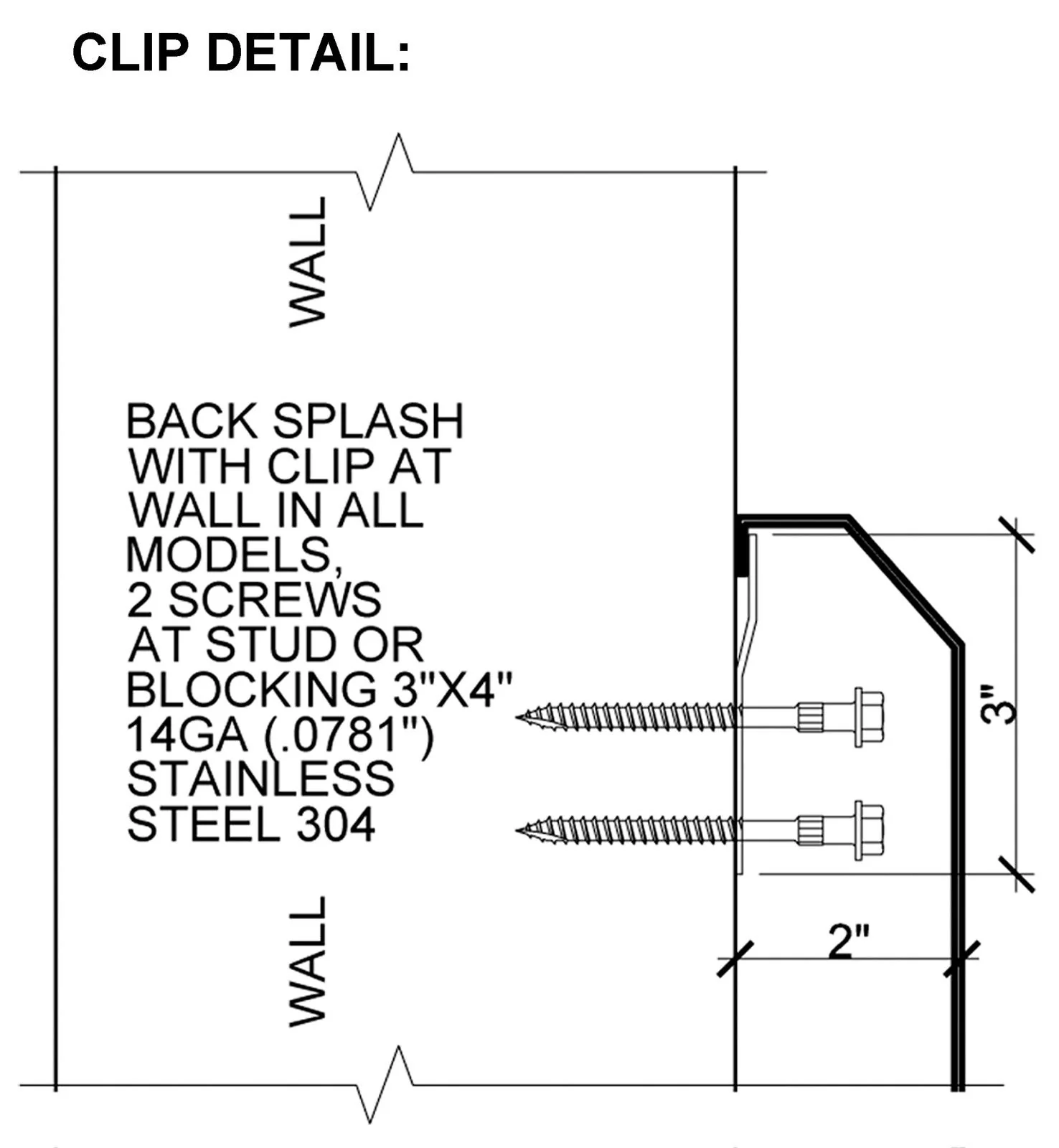

3	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")
4	Stainless Steel legs diameter 1-5/8" OD 16ga (0.0625")with adjustable bullet shape feet base 1" height, with solid welded, braced each pair with 1-5/8" OD Stainless Steel channel 6" over the floor
6	2-1/2" Standard screws



Shipping

 Estimated Weight: 115 lbs

 Estimated Shipping Dimensions: 48" Long x 28" wide 48" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.

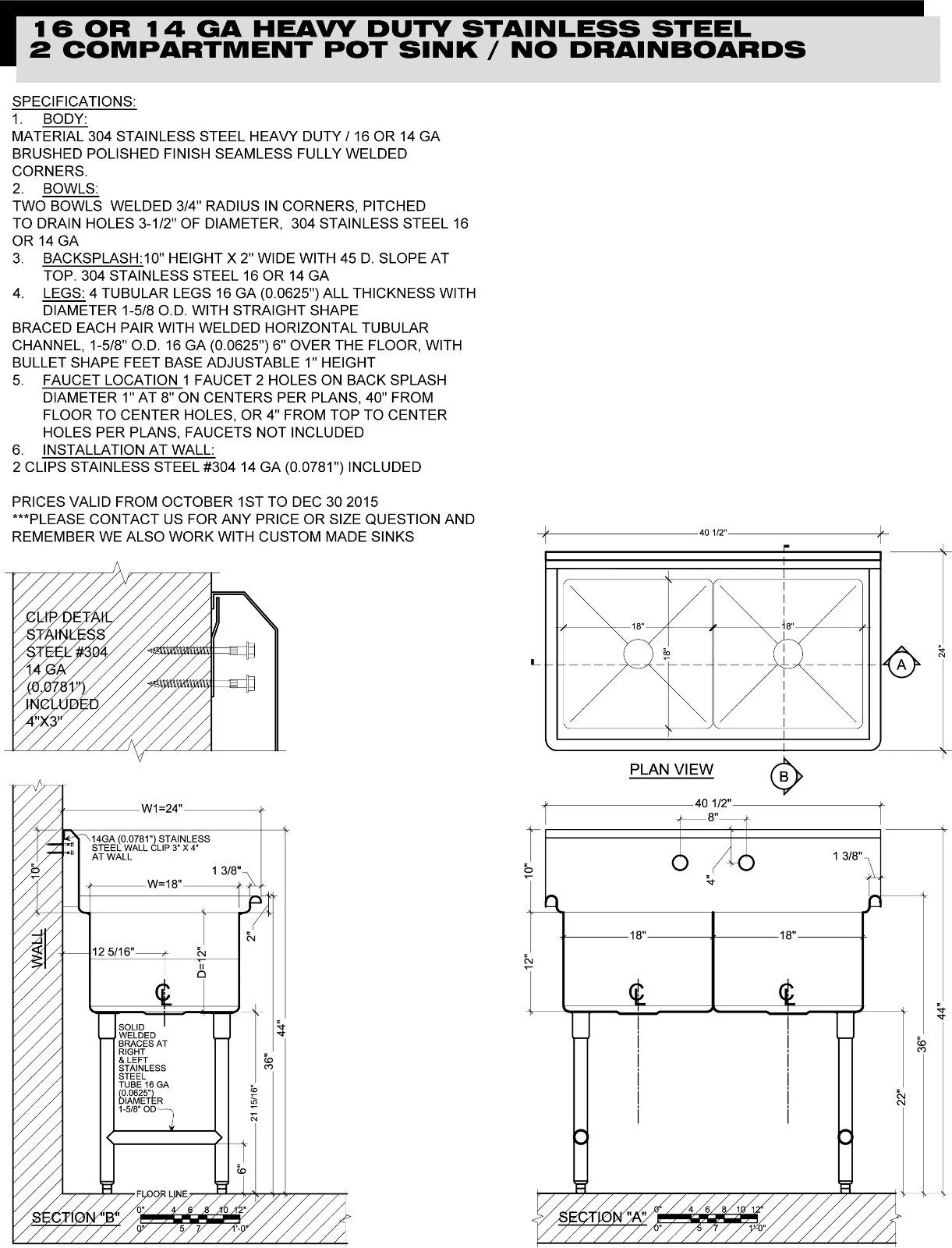

PDF

S4024-181812-2N-14
