Shop our commercial stainless steel Island Wash up Sinks. If you do not see an option you need, please call us! We can fabricate any sink needed.

Model number: 0108E92408L



Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to a brush finish No.4

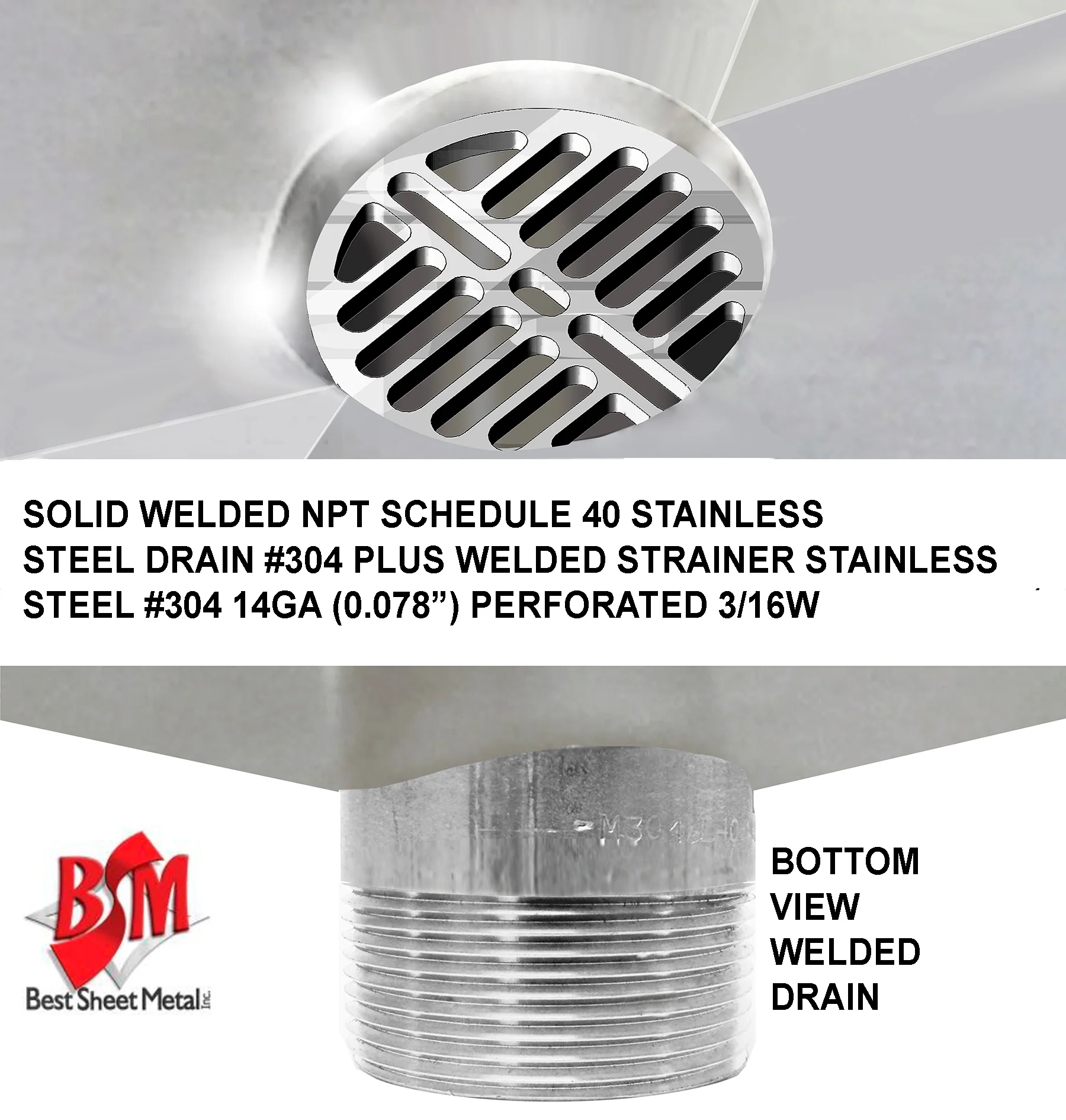

• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF approved
• Includes Electronic faucets and soap dispensers.
• Island Wash Station
• Free Standing

Dimensions

Sink dimensions:

92" Long x 40" Wide x 48" High

Bowl dimensions:

92" Long x 40" Wide x 8" Deep



Accessories



Electronic Faucets		Quantity 10 Electronic Faucet ADA compliant (**COMPLIES WITH CALIFORNIA LAW AB1953-NO LEAD** ) Durable chrome plated brass faucet  Low-battery indicator light, Sensor range adjustment Chrome plated tubular brass 6" gooseneck spout with swivel action AC/DC waterproof control module AA batteries ( Not Included)  100-240 VAC adapter Temperature hot & cold control mixing water valve Hot and cold supply lines 90 degree elbow If needed  Installation guide
Soap Dispenser		Quantity 8 Stainless Steel 40 Oz Soap Dispenser Liquid Soap Only



All accessories have a 1-year limited warranty.

Mounting:

Stainless Steel Round Tube Brackets:

8	Stainless steel Horizontal Solid Welded braces diameter 1-5/8" OD at legs 16 ga (0.0625")
8	Stainless Steel legs diameter 1-5/8" OD 16 ga (0.0625") with adjustable floor plate 1" height
16	2-1/2" Standard screws



Shipping

Estimated Weight: 360 lbs

Estimated Shipping Dimensions: 96" Long x 48" wide 54" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.

PDF

0108E92408L
