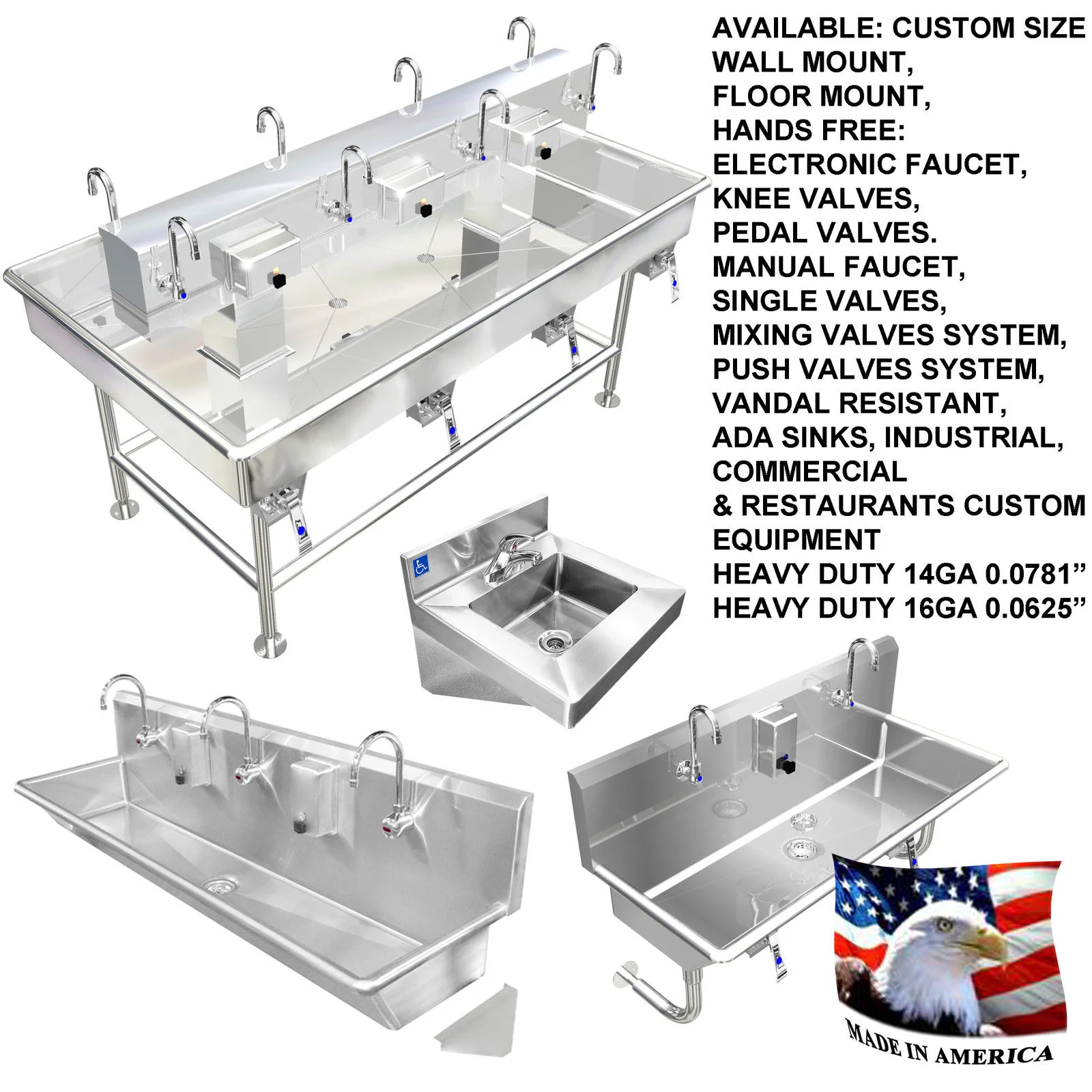

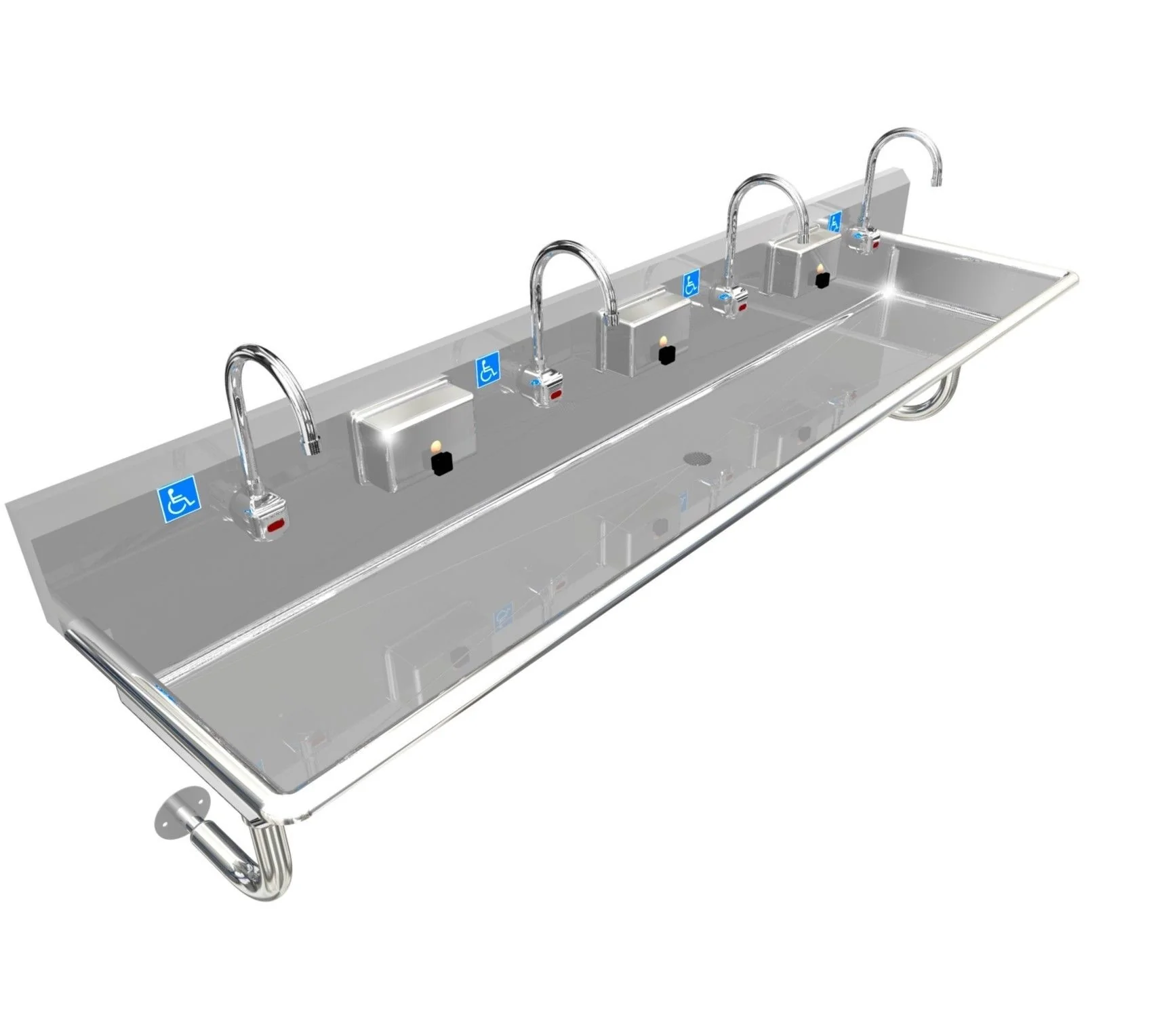

Shop our ADA-compliant stainless steel sink line. If you do not see an option you need, please call us! We can fabricate any sink needed.

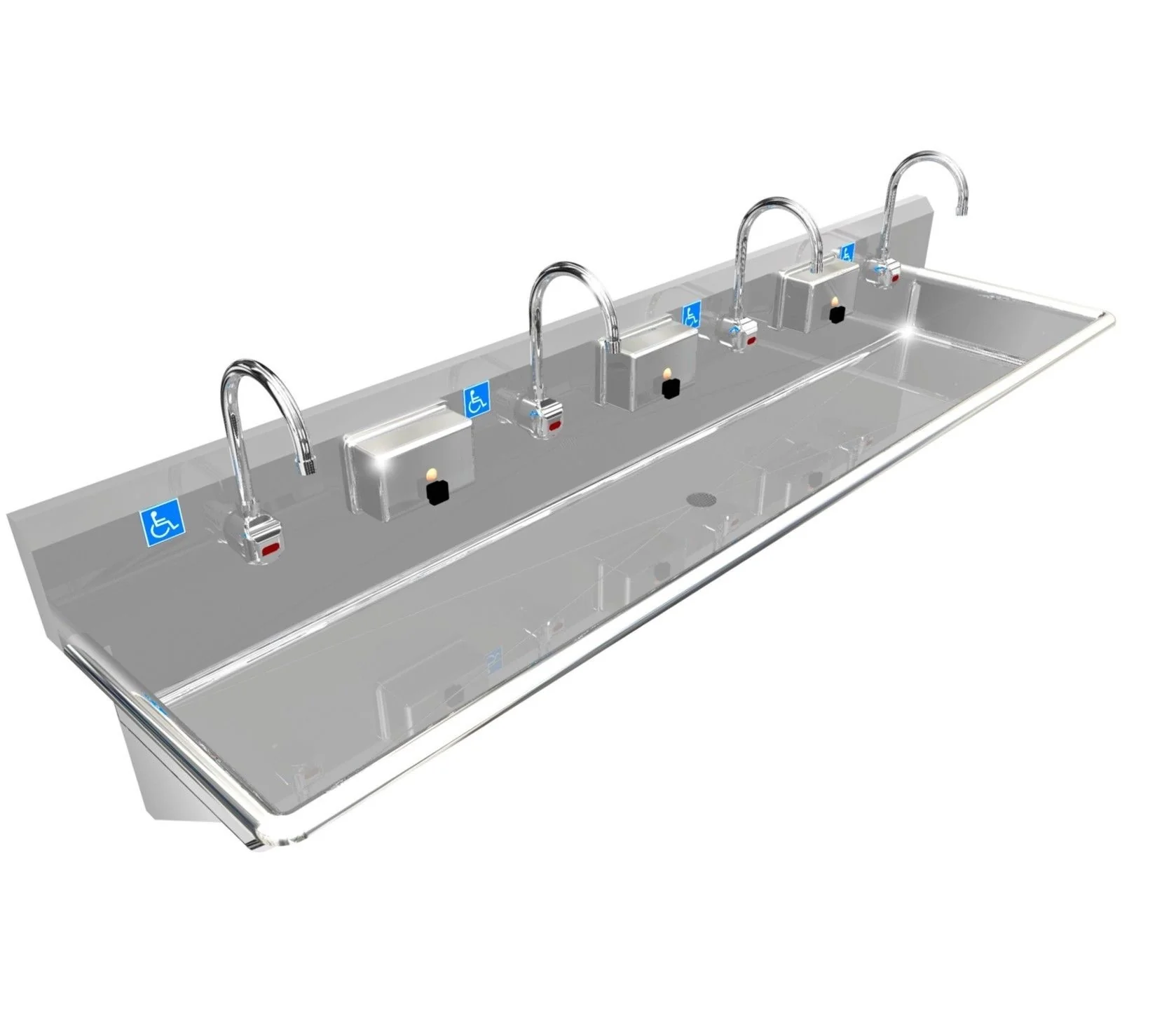

Model Number: ADA-043E962066B



Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 (0.0781") #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to brush finish No. 4

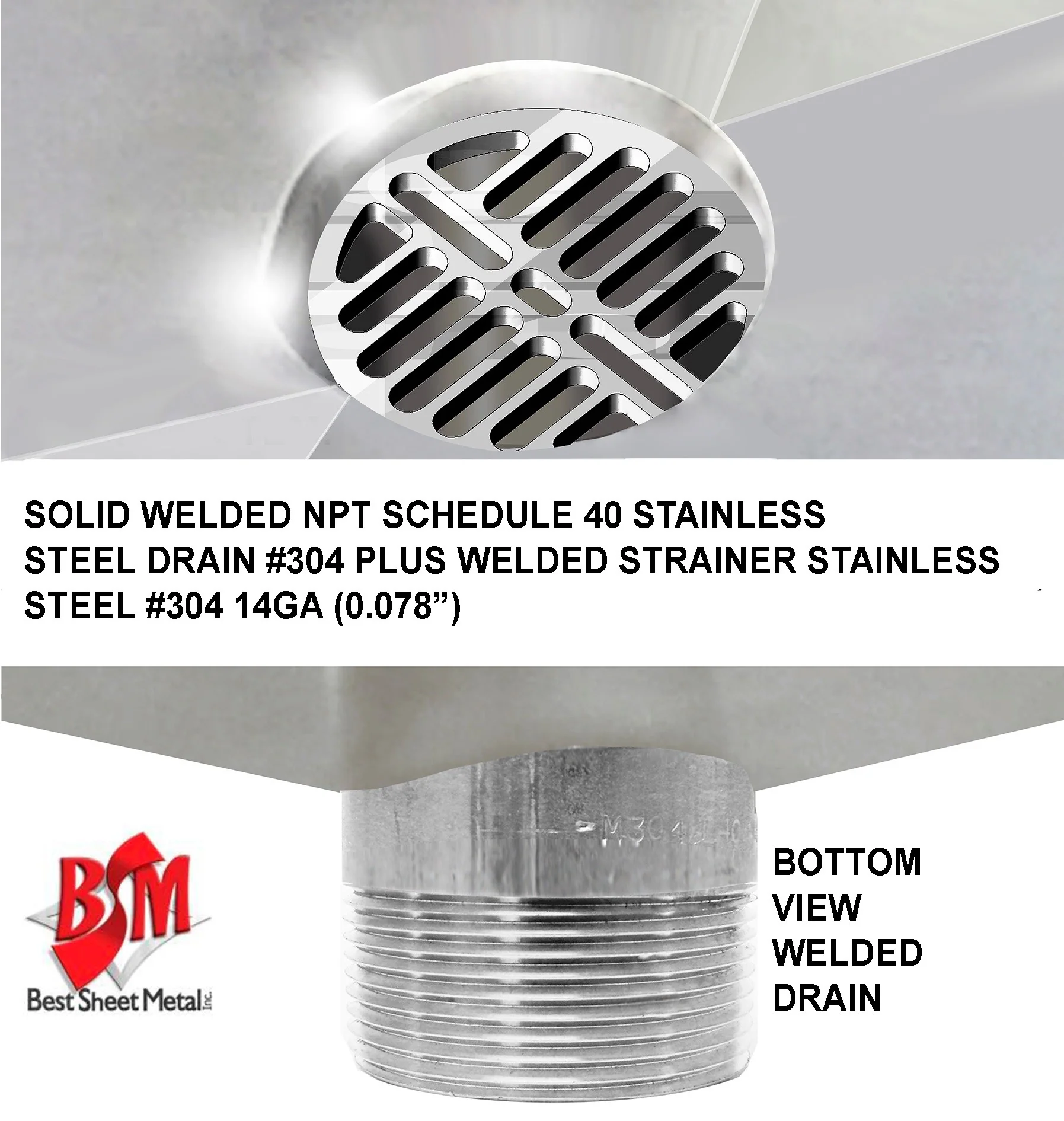

• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF Approved
• ADA Compliant
• With low profile backsplash for mirror ADA code 1127A.8.3.

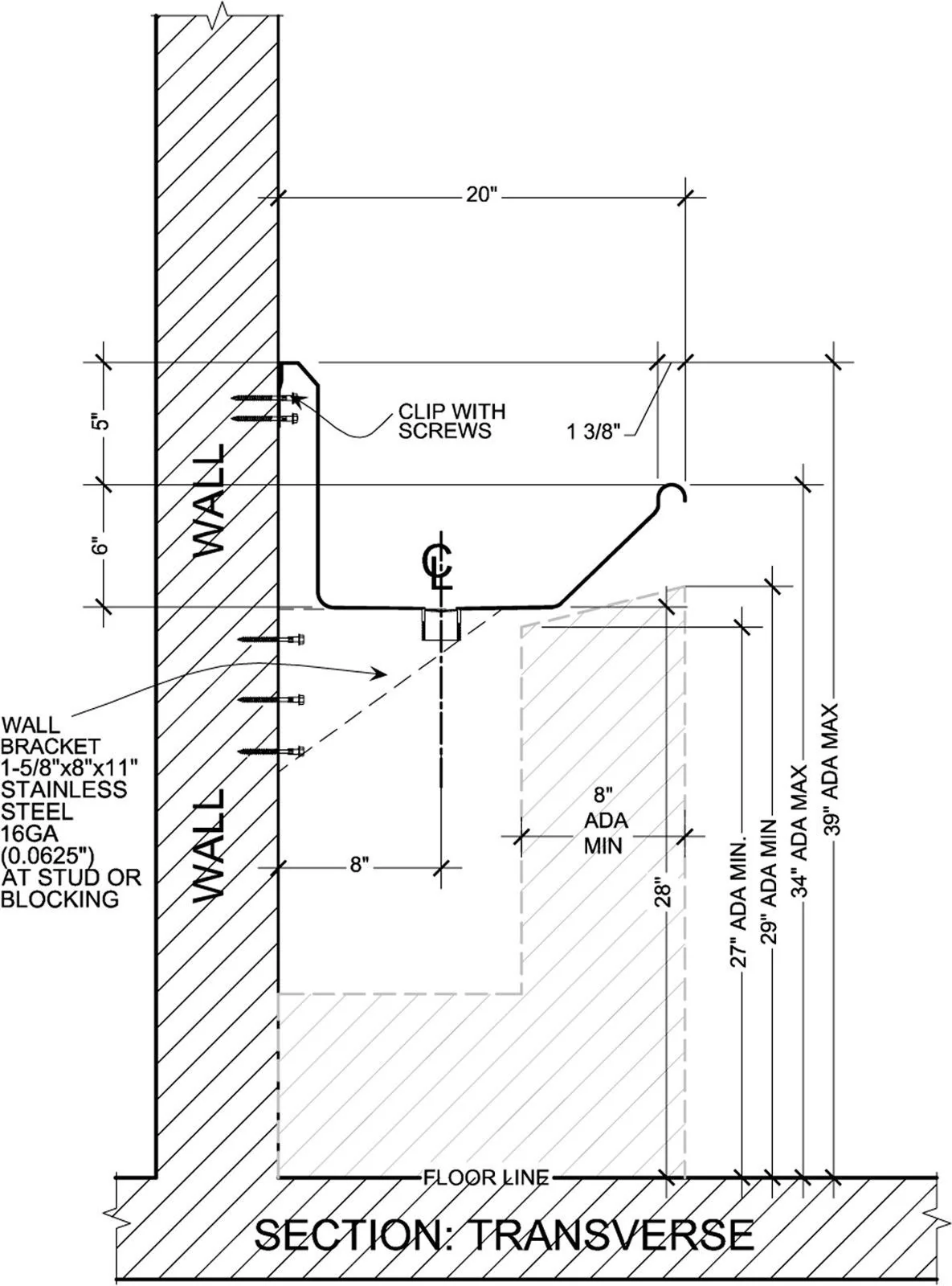

• Total height 39" from floor to top of backsplash
• Includes Electronic Faucet and Soap Dispenser



Dimensions

Sink dimensions:

96" Long x 20" Wide x 6" Deep

Back Splash Dimensions:

96" Long x 2" Wide x 5" High

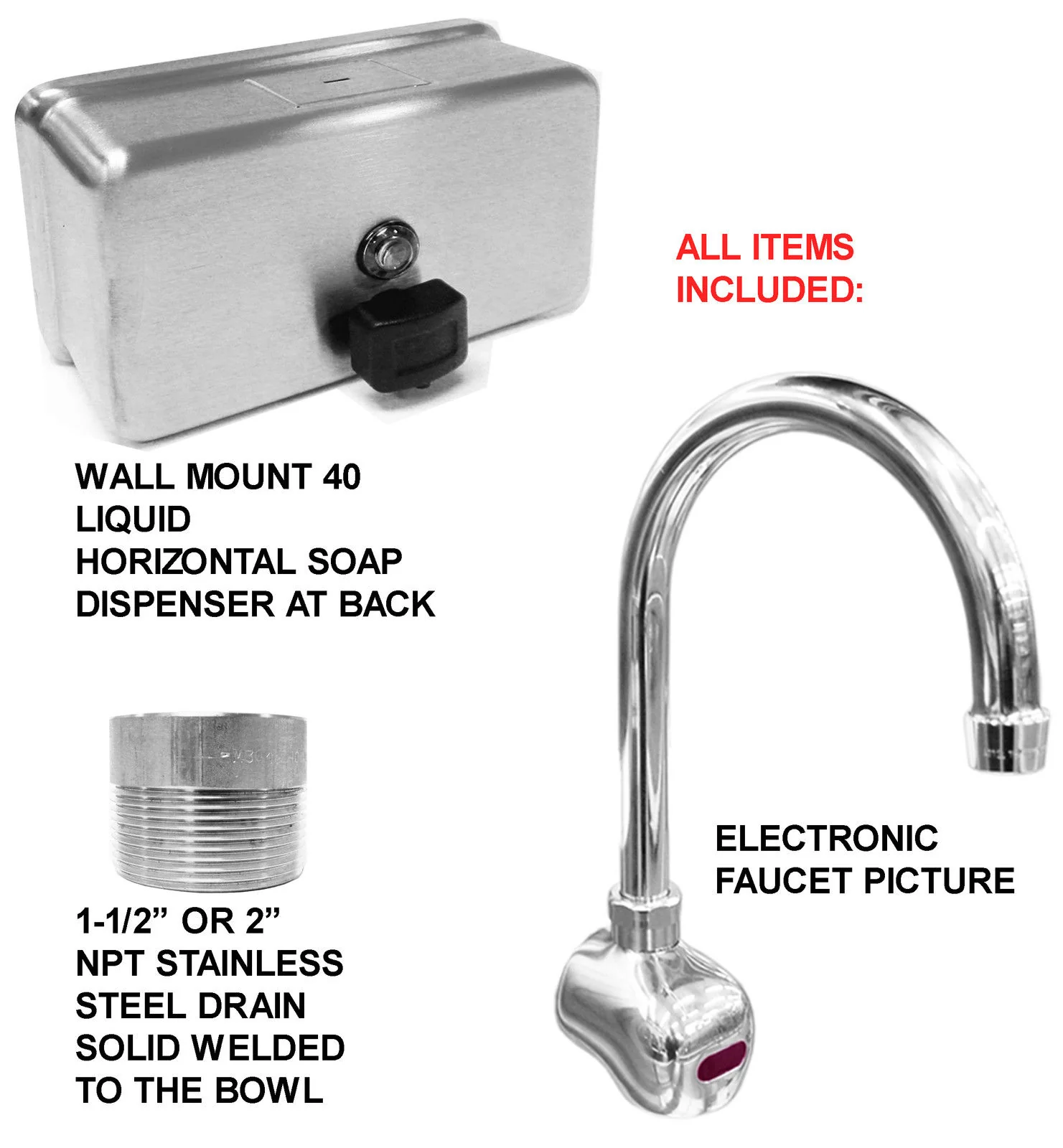

Accessories | Mounting



Electronic Faucet		Quantity 4:  Electronic Faucet ADA compliant (**COMPLIES WITH CALIFORNIA LAW AB1953-NO LEAD** ) Durable chrome plated brass faucet  Low-battery indicator light, Sensor range adjustment Chrome-plated tubular brass 6" gooseneck spout with swivel action AC/DC waterproof control module AA batteries (Not Included) 100-240 VAC adapter Temperature hot & cold control mixing water valve Hot and cold supply lines 90 Degree elbow if needed Installation guide
Soap Dispenser		Quantity 3: Stainless Steel 40 Oz Horizontal Soap Dispenser  For Liquid soap only

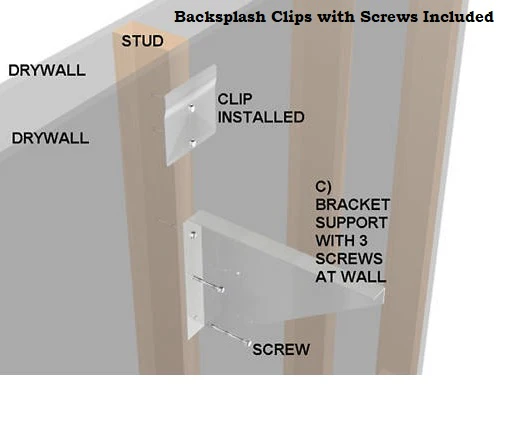

Mounting:

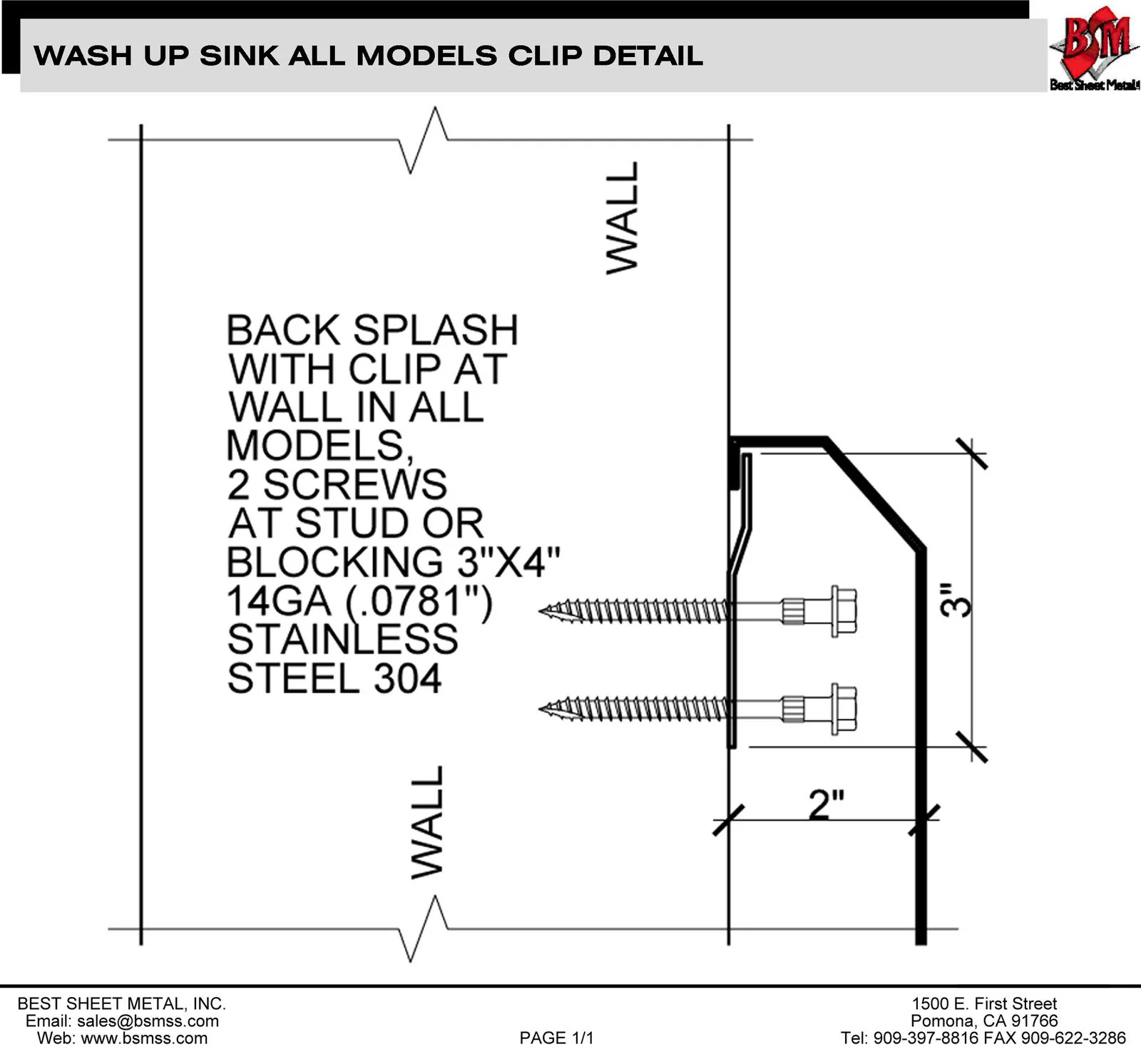

4	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")
2	Stainless Steel Brackets 8" x 10" x 1-5/8" 16ga (0.0625")
14	2-1/2" Standard screws

All accessories have a 1-year limited warranty.

Shipping

Estimated Weight: 192 lbs

Estimated Shipping Dimensions: 102" Long x 25" wide 30" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.

PDF

ADA-043E962066B
