H.D. 14GA Multi-Station Wash up Sink, 96" | ADA-043E962066R

H.D. 14GA Multi-Station Wash up Sink, 96" | ADA-043E962066R

Shop our ADA-compliant commercial stainless steel wash-up sink. If you do not see an option you need, please call us! We can fabricate any sink needed. (909) 397-8816Ā

Model Number: ADA-043E962066R

Ā

FeaturesĀ

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

  • Made from 14 gauge (0.0781")Ā Ā Heavy-Duty Stainless Steel Type 304 #4
  • Made in The USA
  • Fully seamless welded cornersĀ
  • Fully polished to a brush finish No. 4

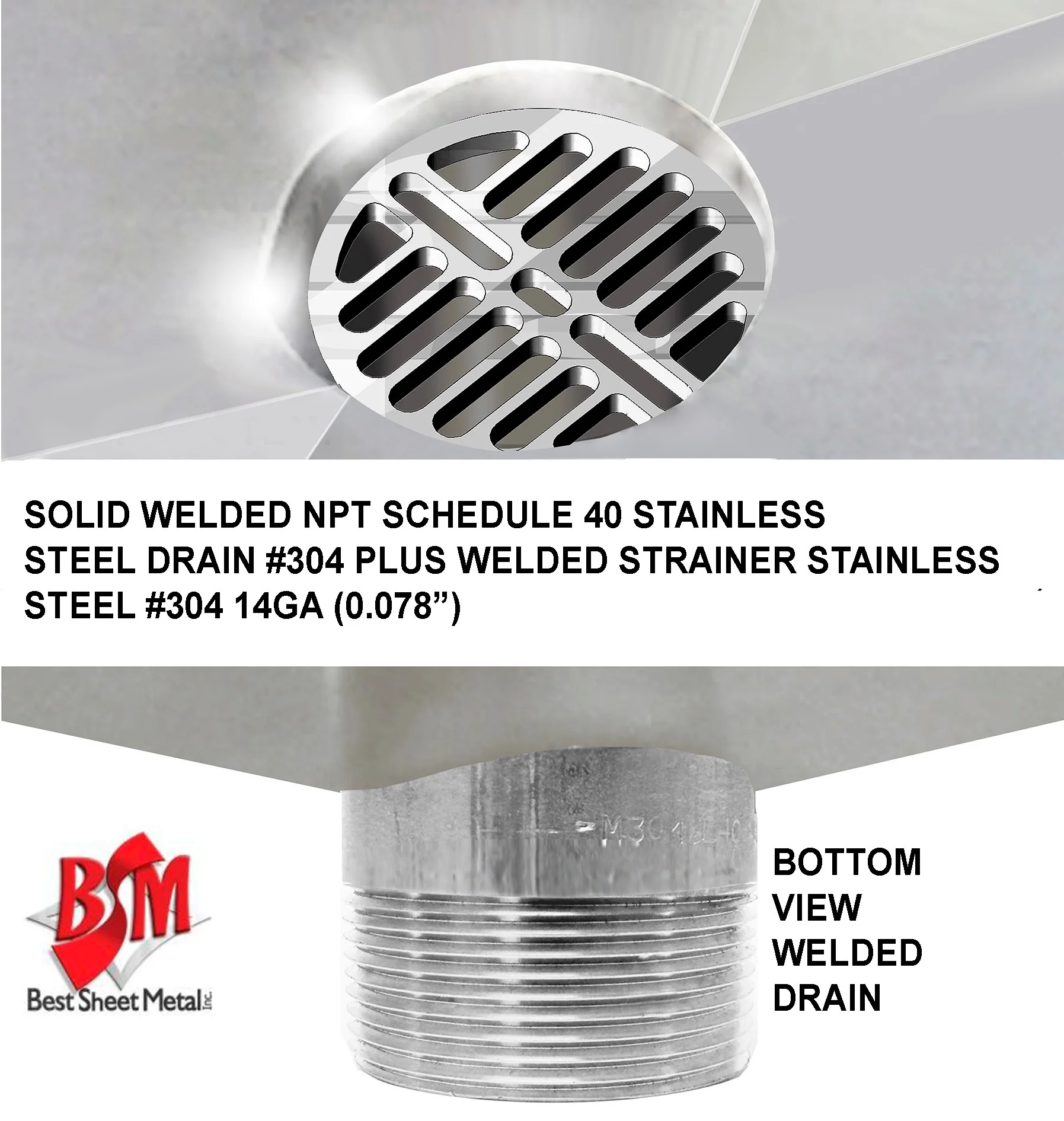

  • Fully welded 1-1/2" Drain with fixed screen
  • ETL and NSF ApprovedĀ
  • ADA Compliant

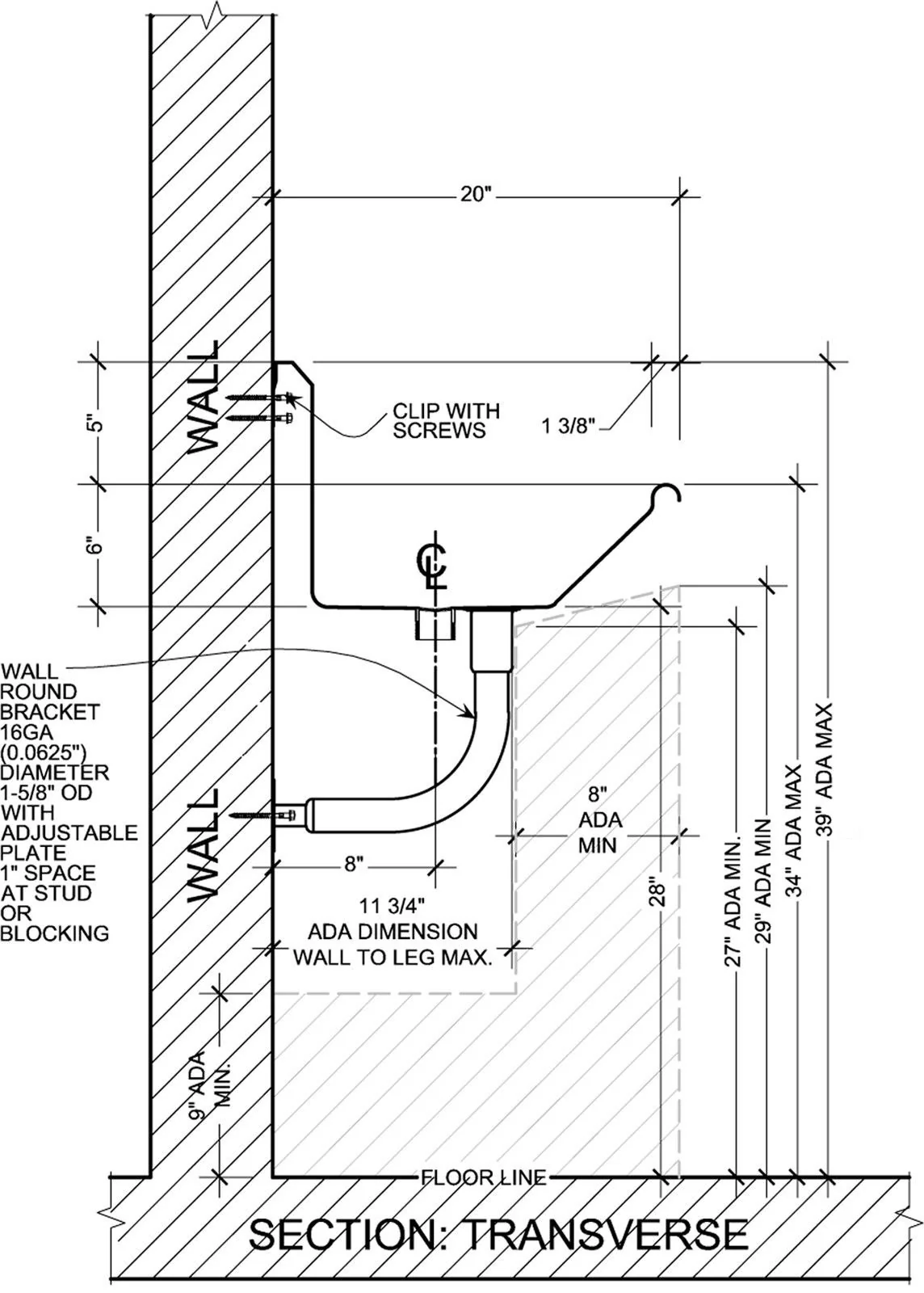

  • With low profile backsplash for mirror ADA codeĀ 1127A.8.3.
  • Total height 39" from floor to top of backsplash
  • Includes Electronic FaucetsĀ
  • Wall Mounted withĀ Round Tube BracketsĀ
DimensionsĀ

Sink dimensions for all varieties:Ā

96" Long x 20" Wide x 6" DeepĀ

Back Splash Dimensions:

96"Ā Long x 2" Wide x 5" High

Ā

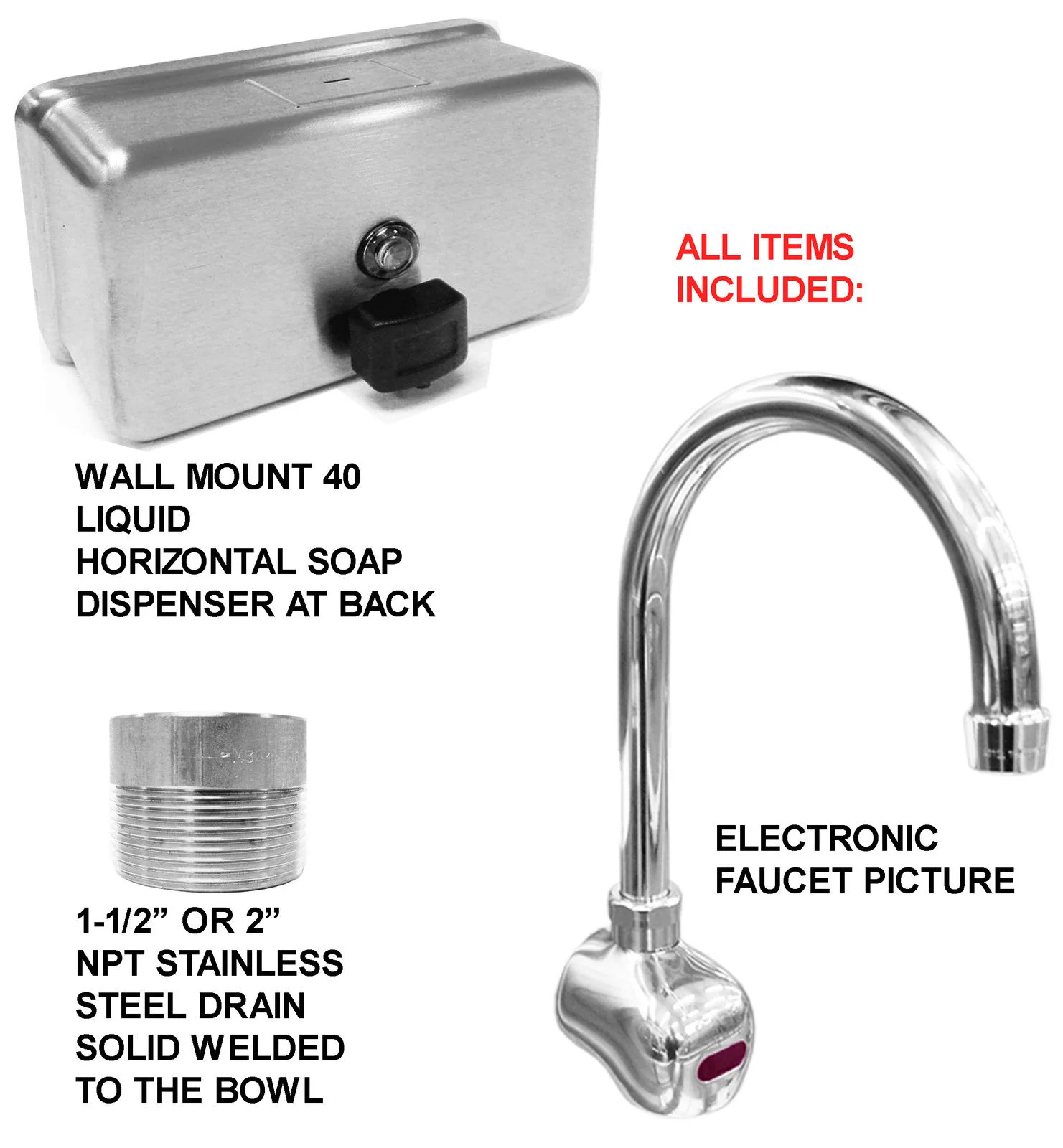

AccessoriesĀ

Ā

Electronic FaucetĀ
Quantity 4
  • Electronic Faucet ADA compliant (**COMPLIES WITH CALIFORNIA LAW AB1953-NO LEAD** )
  • Durable chrome plated brass faucetĀ
  • Low-battery indicator light, Sensor range adjustment
  • Chrome-plated tubular brass 6" gooseneck spout with swivel action
  • AC/DC waterproof control module
  • AA batteries (Not Included)
  • 100-240 VAC adapter
  • Temperature hot & cold control mixing water valve
  • Hot and cold supply lines
  • 90 Degree Elbow If Needed
  • Installation guide
Soap DispenserĀ
Quantity 1
  • Stainless Steel 40 Oz Soap Dispenser
  • Liquid Soap OnlyĀ

Ā

All accessoriesĀ have a 1-year limited warranty.Ā

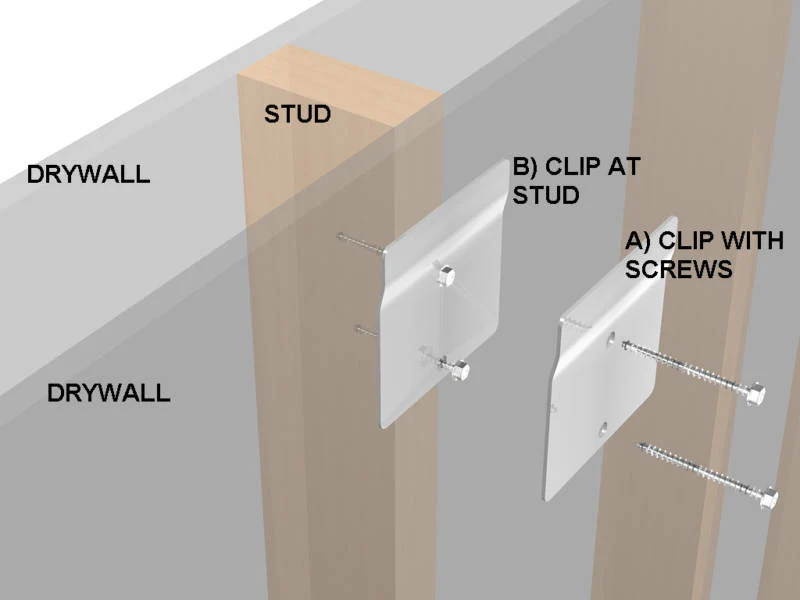

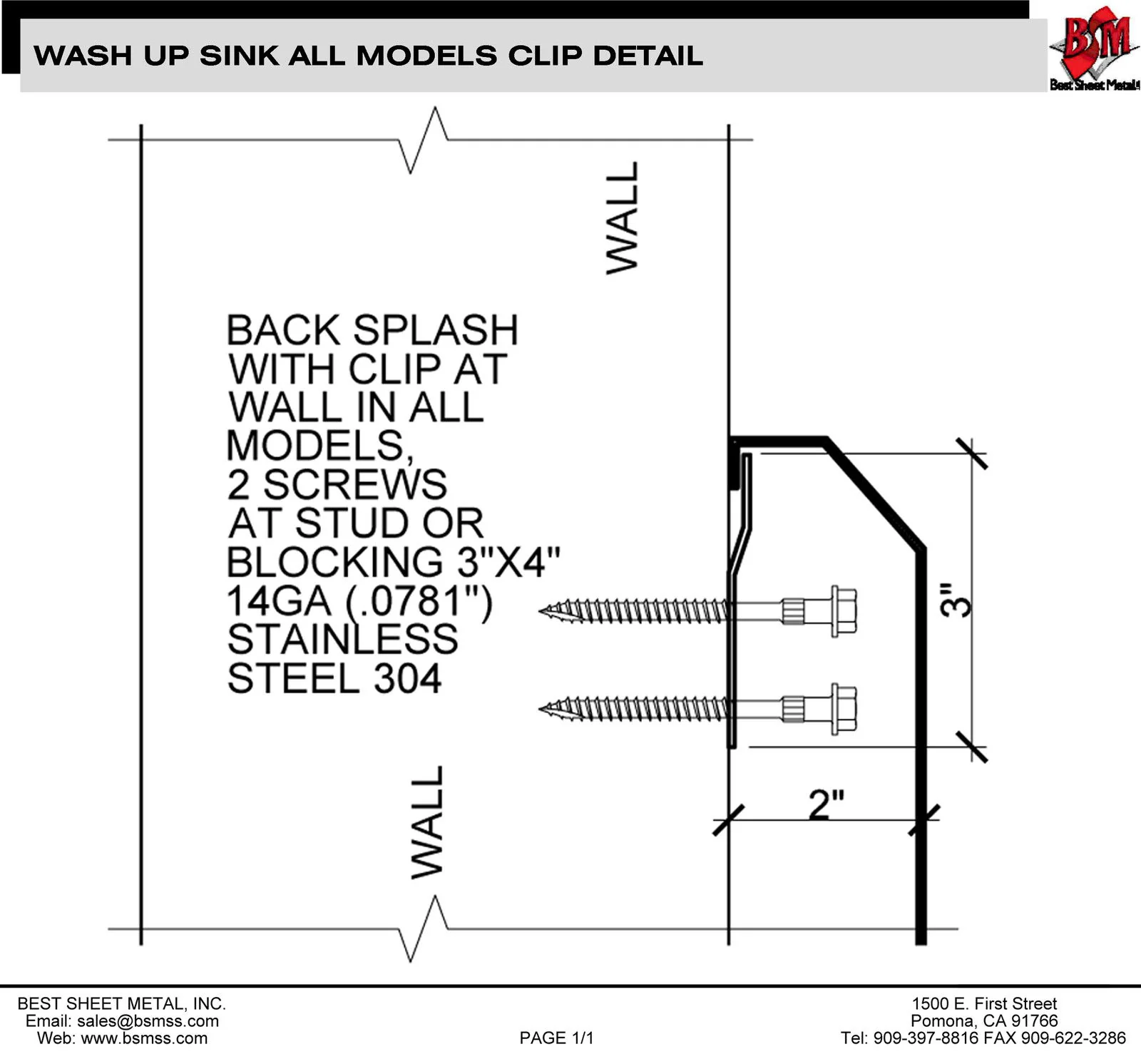

Mounting

4

Stainless Steel Wall clips 3"x 4"Ā 14 gauge (0.0781")

2

Stainless Steel Round Brackets (or Round Legs) diameter 1-5/8" ODĀ 16ga (0.0625")Ā with adjustable wall plate 1"

12

2-1/2" Standard screws
ShippingĀ

Estimated Weight:Ā 192 lbsĀ

Estimated Shipping Dimensions: 100" Long x 24" wide 29" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
