H.D. 14GA 3 Compartment Restaurant Commercial Sink 120-1/2"L | SHD12130-3-242414-2LR-BLR
Shop today for one of our most reliable and sturdiest commercial restaurant sinks. All of our restaurant sinks come in 14 Gauge.
Our range is very customizable. If you do not see an option you would like, contact us today. We can provide you with a quote.
Model Number: SHD12130-3-242414-2LR-BLR S9024-181812-3B-16 16 GAUGE
Features
Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.
- Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 #4
- Made in the USA
- Fully seamless welded corners
- Fully polished to a brush finish No. 4
- With drain basket
- Made to the standard restaurant specifications
- ETL and NSF approved Fabrication
- QTY 2: Holes 1" diameter at center backsplash 8" on centers, per shop drawing (check pdf file) or customer request.

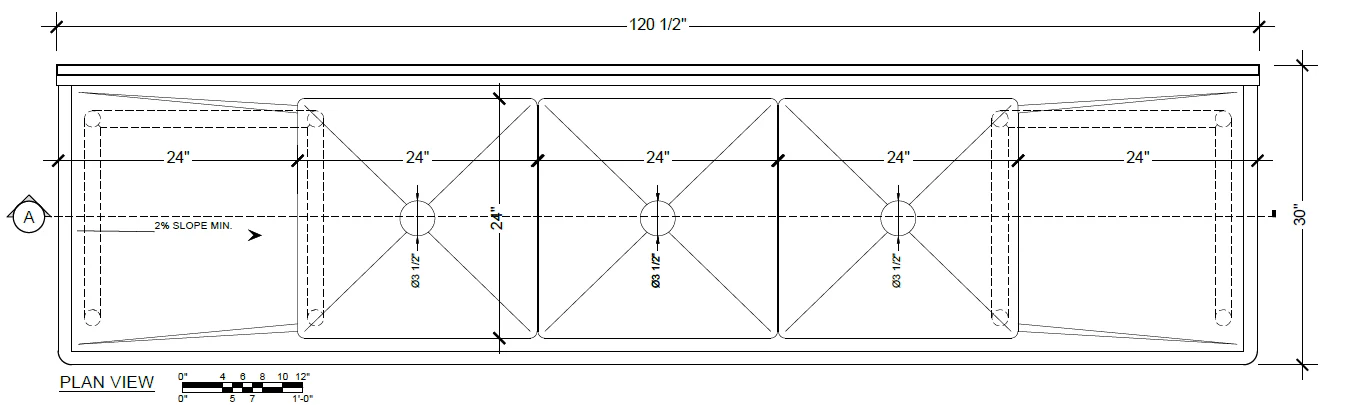

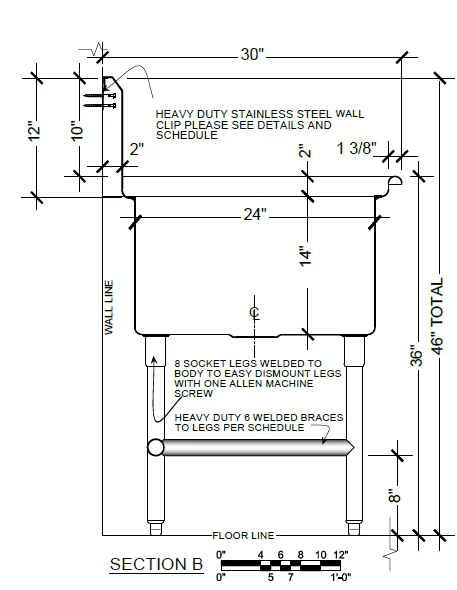

Dimensions
Overall dimensions:
120-1/2" Long x 30" Wide x 46" Height
Back Splash Dimensions:
120-1/2" Long x 2" Wide x 12" High
Bowl Dimensions:
Bowl 24" Long x 24" Wide x 14"deep
Drain Boards:
24" Long
Anchoring
|
4 |
Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781") |
|
8 |

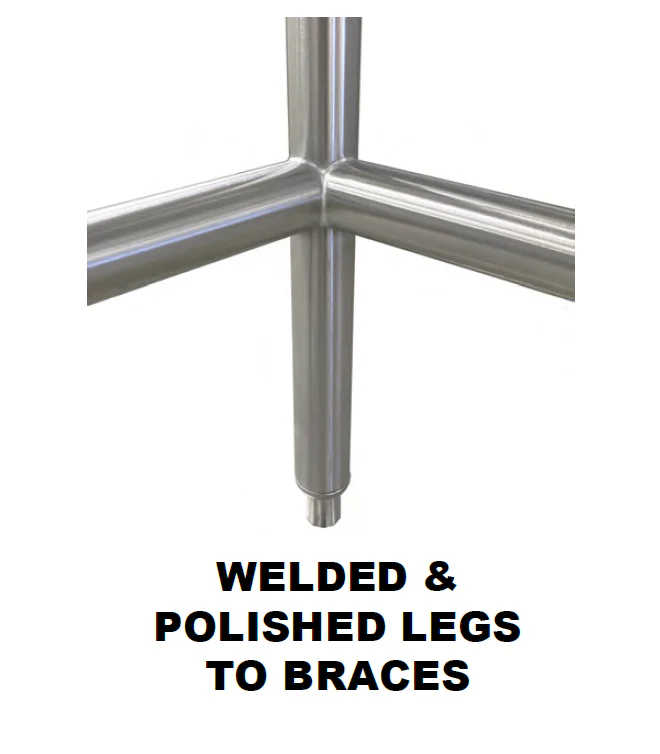

Stainless Steel legs diameter 1-5/8" OD 16 ga (0.0625") with adjustable bullet shape feet base 1" height, with solid welded, braced each pair with 1-5/8" OD Stainless Steel channel 6" over the floor |
|
8 |
2-1/2" Standard screws |
Includes:
|
1 |
Bowl 24" x 24" x 14"deep |
|
2 |
14 gauge (0.0781") Drainboards 24"L |
|
2 |
Holes 1" diameter at center backsplash 8" on centers, per shop drawing (check pdf file) or customer request. |
Shipping
Estimated Weight: 205lbs
Estimated Shipping Dimensions: 132" Long x 40" wide 52" Height
Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.
If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
| SHD12130-3-242414-2LR-BLR |
|
