H.D. 14GA 3 Compartment Restaurant Commercial Sink 78"L | SHD7830-3-242414-N
Shop today for one of our most reliable and sturdiest commercial restaurant sinks. All of our restaurant sinks come in 14 Gauge.
Our range is very customizable. If you do not see an option you would like, contact us today. We can provide you with a quote.Ā
Model Number: SHD7830-3-242414-NS9024-181812-3B-16Ā 16 GAUGEĀ
Ā
FeaturesĀ
Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.
- Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 #4
- Made in the USAĀ
- Fully seamless welded cornersĀ
- Fully polished to a brush finish No. 4
- With basket drainĀ
- Made to the standard restaurant specificationsĀ
- ETL and NSF approved Fabrication
- QTY 2: Holes 1" diameter at center backsplash 8" on centers, per shop drawing (check pdf file)Ā

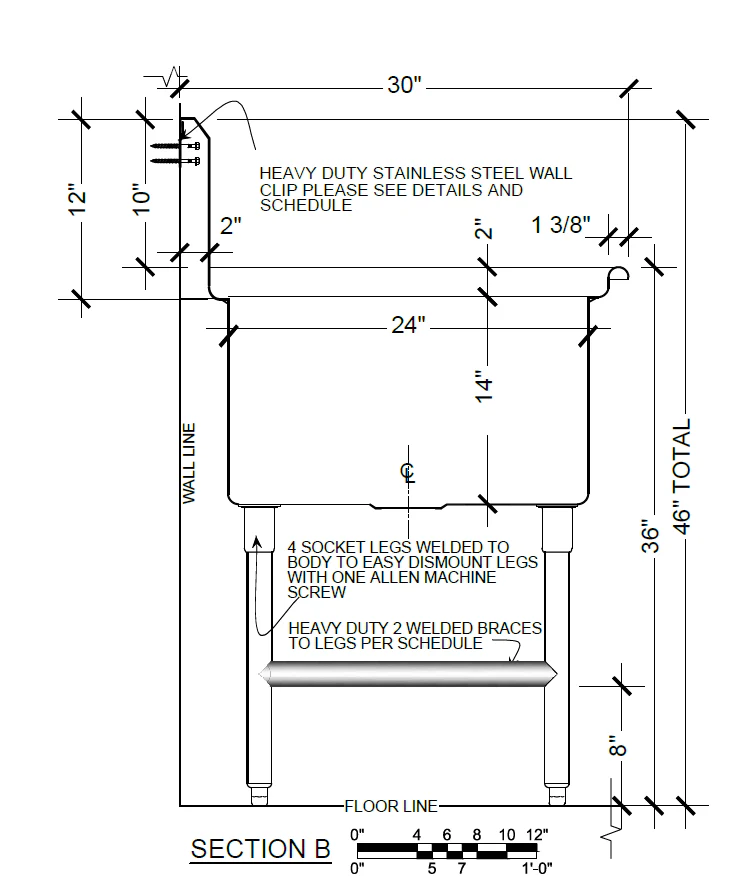

DimensionsĀ
Overall dimensions:Ā
78" Long x 30" Wide x 46" Height
Back Splash Dimensions:
78" Long x 2" Wide x 12" High
Bowl Dimensions:Ā
Bowl 24" Long x 24" WideĀ x 14"deepĀ
Ā
Anchoring
|
4 |
Stainless Steel Wall clips 3"x 4"Ā 14 gauge (0.0781") |
|
4 |

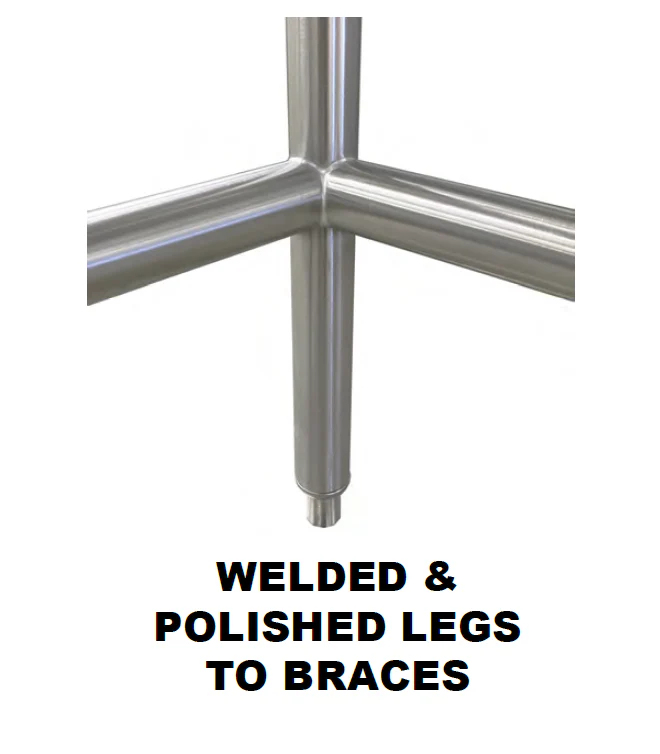

Stainless Steel legs diameter 1-5/8" ODĀ 16 ga (0.0625")Ā with adjustable bullet shape feet base 1" height, with solid welded, braced each pairĀ with 1-5/8" OD Stainless Steel channel 6" over the floor |
|
8 |
2-1/2" Standard screws |
Ā
Includes:Ā
Ā
|
1 |
Bowl 24" x 24" x 14"deep 14 gauge (0.0781") |
| 0 | Ā No Drainboards |
|
2 |
Holes 1" diameter at center backsplash 8" on centers, per shop drawing (check pdf file) or customer request. |
ShippingĀ
Estimated Weight:Ā 150lbsĀ
Estimated Shipping Dimensions: 85" Long x 28" wide 48" HeightĀ
Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.
If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.
