Shop our ADA-compliant stainless steel sink line. If you do not see an option you need, please call us! We can fabricate any sink needed.

 Model Number: ADA-D22M60206H



Features

Our sinks are crafted with the highest materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 (0.0781") #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to a brush finish No. 4
• Fully welded 1-1/2" Drain with fixed screen
• ETL and NSF Approved
• ADA Compliant

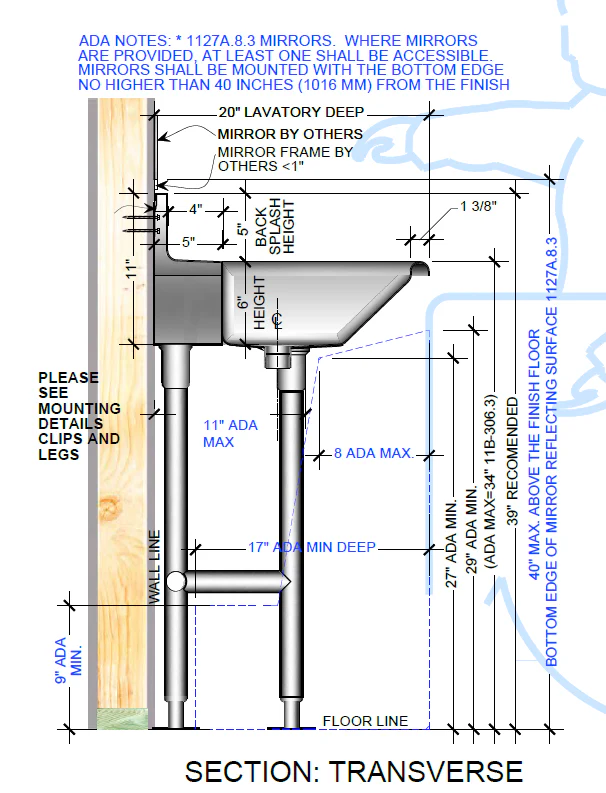

• With low profile backsplash for mirror ADA code 1127A.8.3.
• Total height 39" from floor to top of backsplash
• Free Standing with 4 Stainless Steel Straight Legs
• Includes Deck Mounted Metering Faucet and Soap Dispenser

Dimensions

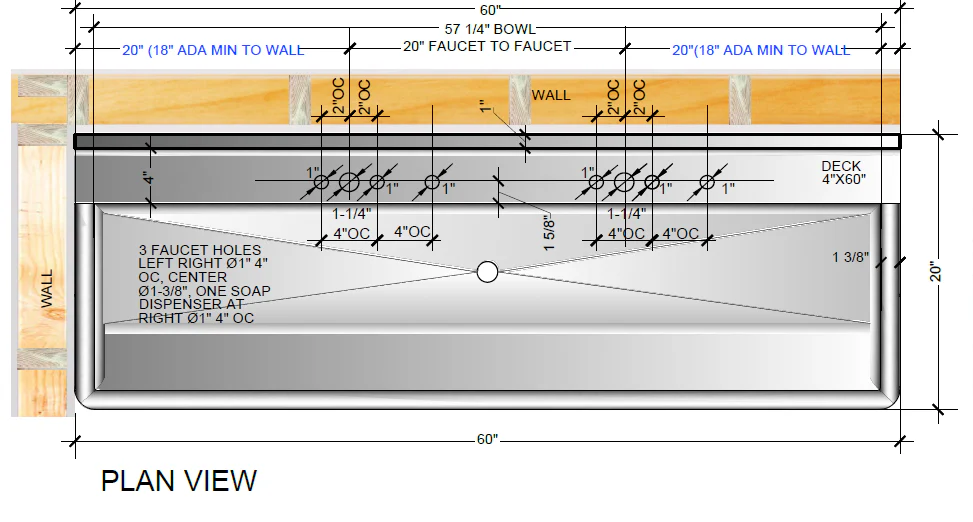

Sink dimensions:

60" Long x 20" Wide x 6" Deep

Back Splash Dimensions:

60" Long  x 1" Wide x 5" High



Accessories | Mounting



		Deck Mounted Metering Faucet Quantity 2:    Model: BSM-S-72 vandal resistant design prevents damage and theft. Available but not included mixing valves
		Deck Mounted Soap Dispenser Quantity 2:  Pump Soap Dispenser


Mounting:

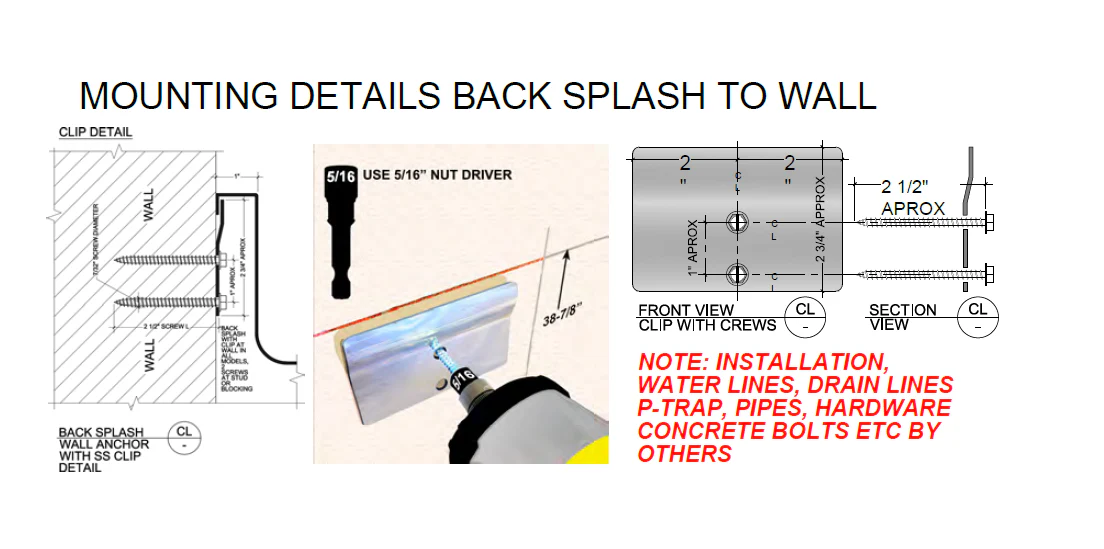

3	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")

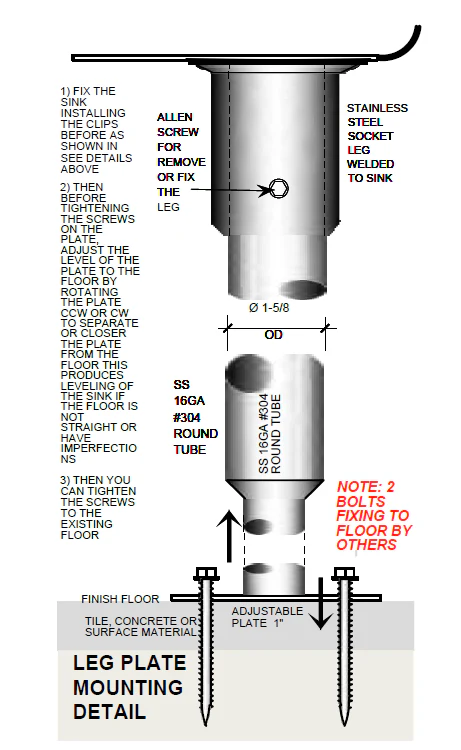

4	Stainless Steel legs welded to sink body and braces, diameter 1-5/8" OD 16ga (0.0625") with adjustable floor plate 1" height,
14	2-1/2" Standard screws

All accessories have a 1-year limited warranty.

Shipping

Estimated Weight: 150 lbs

Estimated Shipping Dimensions: 66" Long x 25" wide 50" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.

PDF

ADA-D22M60206H
