Shop today for one of our most reliable and sturdiest commercial restaurant sinks. All of our restaurant sinks come in two options: 14 Gauge and 16 Gauge.

Our range is very customizable. If you do not see an option you would like, contact us today. We can provide you with a quote.

Model Number: 010M362424H

Features

Our sinks are crafted with the highest quality materials possible and designed to be aesthetically pleasing as well as highly durable and functioning.

• Made from 14 Gauge Heavy-Duty Stainless Steel Type 304 #4
• Made in the USA
• Fully seamless welded corners
• Fully polished to a brush finish No.4
• Fully welded 3-1/2" Drain with fixed screen
• Made to the standard restaurant specifications.
• ETL and NSF approved

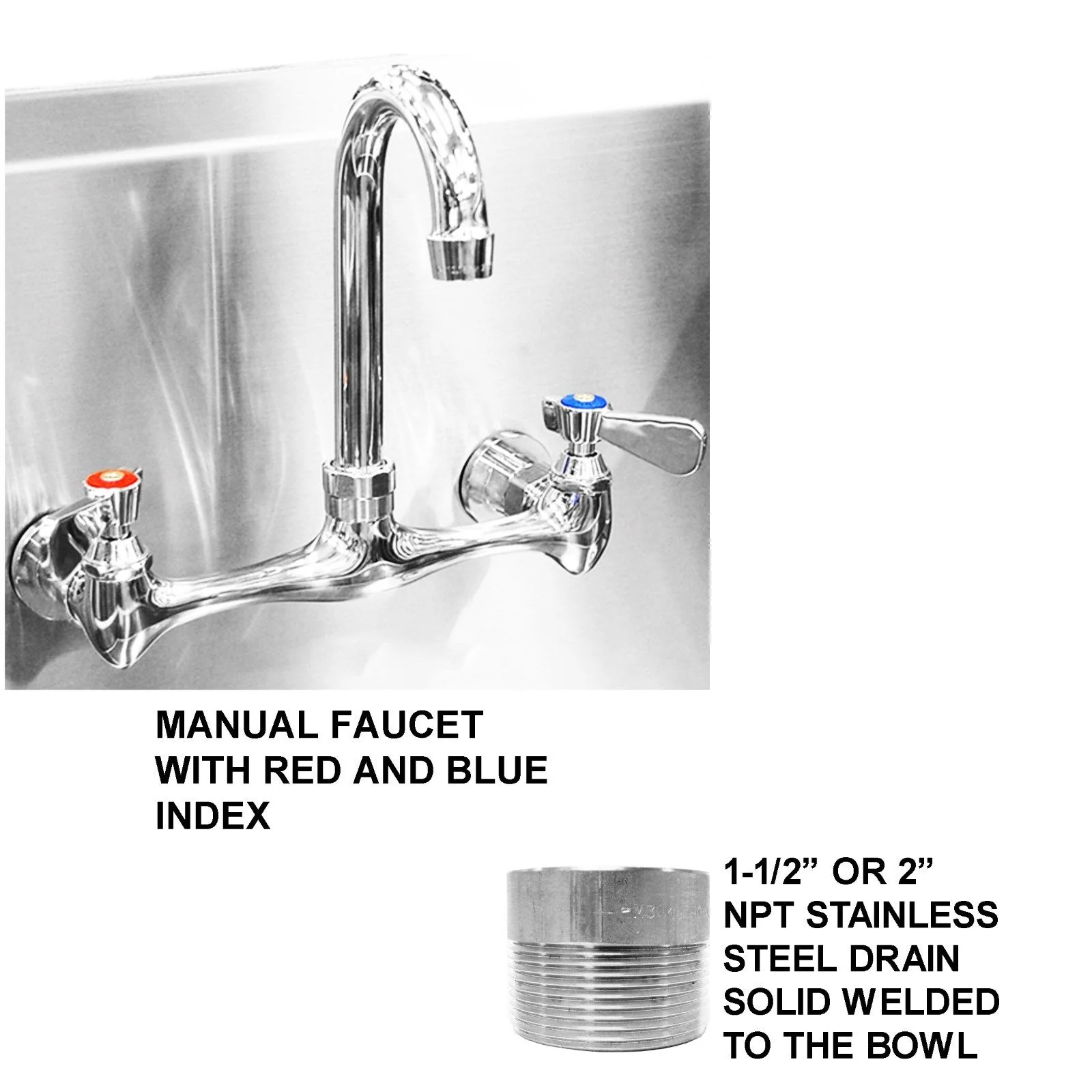

• Includes 8” on center Manual Faucets

Dimensions

Over All Dimension: 36" Long x 24" Wide x 44" High
Sink Dimensions: 36" Long x 24" Wide x 36" Top Height
Back Splash Dimension: 36" Long x 2" Wide x 10"High

Bowl Dimensions: 33" x 20" x 14"

Accessories

 All restaurant sinks ordered include a standard 3-1/2" drain.



Holes: for the punched-in holes, you can specify if you would like them in a different position or the quantity you would like.

Mounting:

4	Stainless Steel Wall clips 3"x 4" 14 gauge (0.0781")

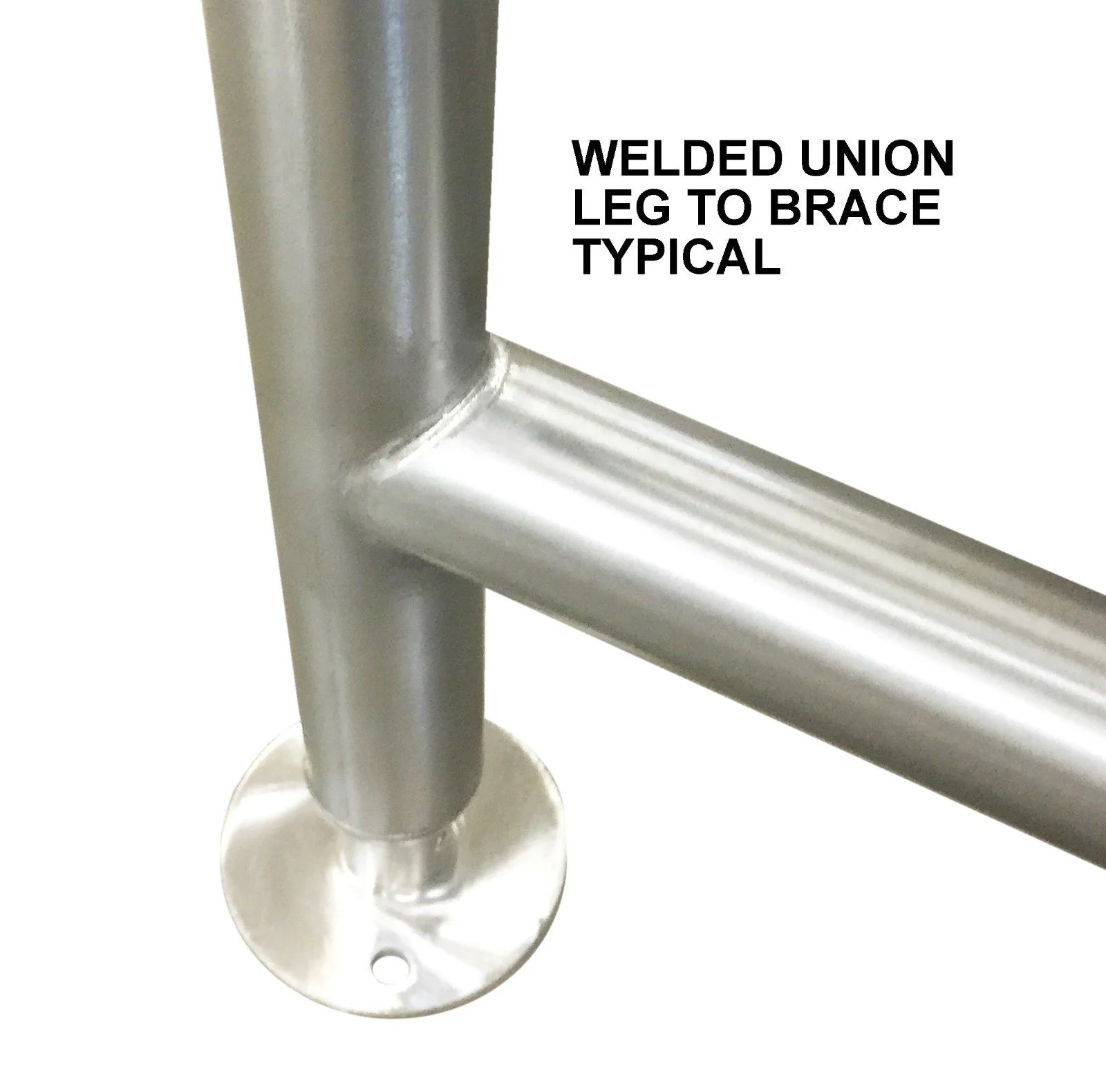

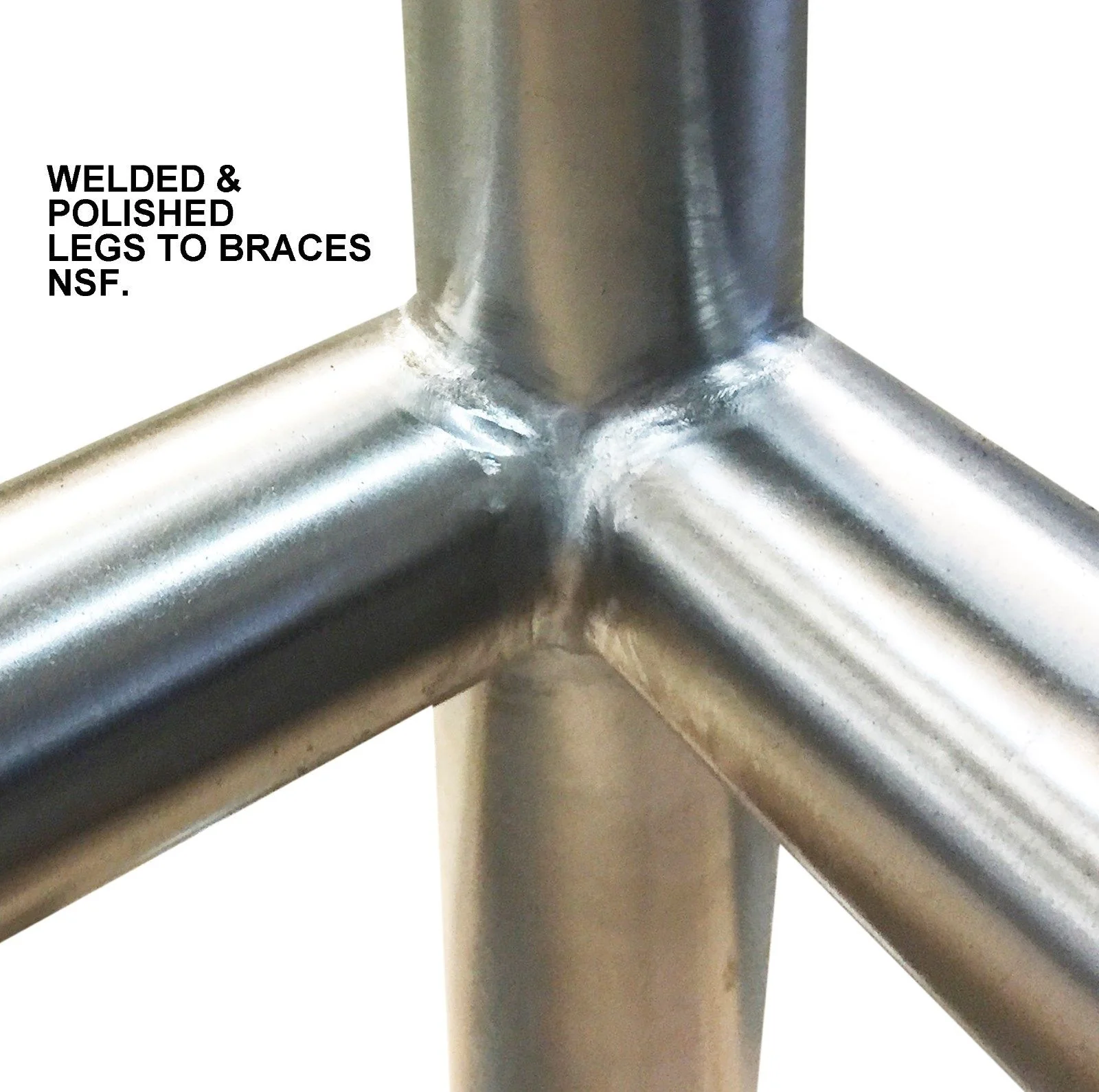

4	Stainless Steel legs diameter 1-5/8" OD 16ga (0.0625")with adjustable bullet shape feet base 1" height, with solid welded, braced each pair with 1-5/8" OD Stainless Steel channel 6" over the floor
8	2-1/2" Standard screws



Shipping

Estimated Weight: 81 lbs

Estimated Shipping Dimensions: 40" Long x 26" wide 48" Height

Sinks are shipped via a third-party freight carrier and have standard shipping costs. This only applies to orders shipping to the U.S. mainland.

If you would like to ship outside of the U.S. mainland (Alaska, Hawaii, Puerto Rico, Islands, etc.) or Canada, please contact us for a shipping quote at [email protected] or (888)444-0773. We do not ship to P.O. Boxes.

PDF

010M362424H
